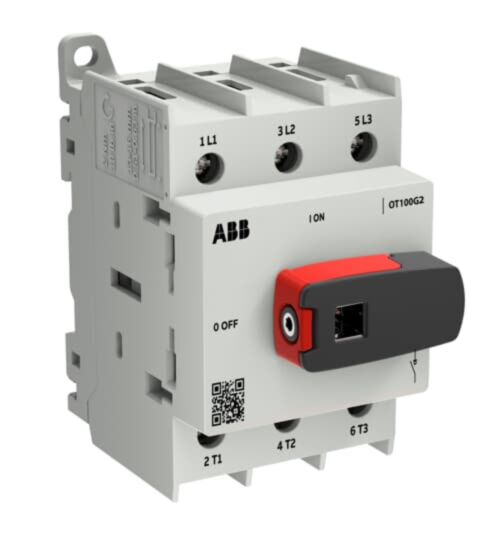

1SCA162547R1001 ABB OT100G2-3BS OT Plus 3 Pole 100A Panel Mounted Switch Disconnector
MPN: 1SCA162547R1001
Alt. SKU: OT100G2-3BS
Special Price
£51.25
£42.71
Regular Price
£78.85
Why Choose the 1SCA162547R1001
The ABB 1SCA162547R1001 is a 3 pole switch disconnector from the OT Plus range, designed for reliable operation with a rated current of 100 A and a maximum operating voltage of 800 V.
Suitable for isolating and switching applications, this device provides a short-circuit rating of 50 kA and a short-time withstand current of 1.5 kA.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162547R1001
- Manufacturer part number: 1SCA162547R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 100 A
- Rated permanent current at AC-21, 400 V: 100 A
- Rated permanent current at AC-23, 400 V: 80 A
- Rated short-time withstand current lcw: 1.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 45 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 45 kW
Downloads
- Datasheet for 1SCA162547R1001
- Installation instructions for 1SCA162547R1001
- Enviromental product declaration for 1SCA162547R1001
- EU Declaration of Conformity for 1SCA162547R1001
- REACh declaration for 1SCA162547R1001
Trusted By Customers Worldwide
"Designed to meet isolation requirements in systems up to 800 V AC with robust fault current handling." Engineering note
Frequently Asked Questions
What is the rated current of the ABB 1SCA162547R1001 switch disconnector?
The rated permanent current is 100 A.
Can this device handle short-circuit conditions?
Yes, it has a conditioned short-circuit current rating of 50 kA.
What is the maximum rated operating voltage?
The device is rated for operation up to 800 V AC.
| Alternative Product SKU | OT100G2-3BS |
|---|---|
| Manufacturer Part Number | 1SCA162547R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925820 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 45kW |
| Rated permanent current at AC-21, 400 V | 100A |
| Switching power at 400 V | 45kW |
| Rated permanent current at AC-23, 400 V | 80A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 100A |
| Amperage | 100A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 91.5mm |
| Width | 52.5mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
