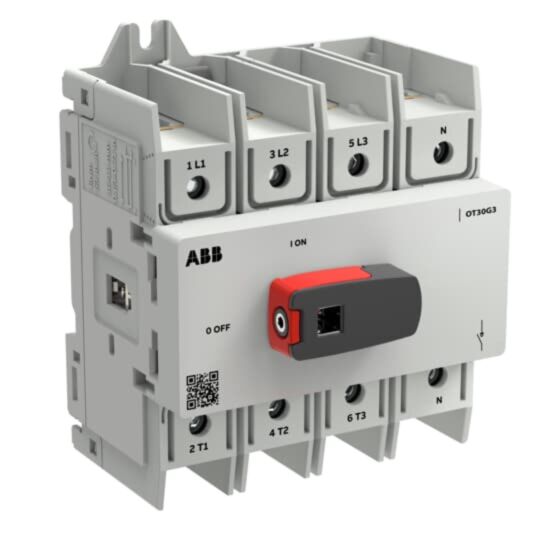

1SCA162545R1001 ABB OT30G3-4BSN2 OT Plus 4 Pole 40A Panel Mounted Switch Disconnector
MPN: 1SCA162545R1001
Alt. SKU: OT30G3-4BSN2
Special Price
£102.37
£85.31
Regular Price
£157.50
Why Choose the 1SCA162545R1001
The ABB 1SCA162545R1001 is a 4 pole switch disconnector from the OT Plus range, designed for reliable isolation and switching in electrical circuits up to 800 V with a rated current of 40 A.
Suitable for use in demanding industrial environments, this device offers a 50 kA conditioned short-circuit rating and 2.5 kA short-time withstand current.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162545R1001
- Manufacturer part number: 1SCA162545R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 4 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 40 A
- Rated permanent current at AC-21, 400 V: 40 A
- Rated permanent current at AC-23, 400 V: 40 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 18.5 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 18.5 kW
Downloads
- Datasheet for 1SCA162545R1001
- Installation instructions for 1SCA162545R1001
- Enviromental product declaration for 1SCA162545R1001
- EU Declaration of Conformity for 1SCA162545R1001
- REACh declaration for 1SCA162545R1001
Trusted By Customers Worldwide
"Unit rated for 18.5 kW switching power at 400 V AC applications." Engineering note
Frequently Asked Questions
What is the maximum rated operating voltage for this switch disconnector?
The maximum rated operating voltage is 800 VAC.
How many poles does the device have?
It is a 4 pole switch disconnector.
What is the rated permanent current at AC-23, 400 V?
The rated permanent current at AC-23, 400 V is 40 A.
| Alternative Product SKU | OT30G3-4BSN2 |
|---|---|
| Manufacturer Part Number | 1SCA162545R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925806 |
| Number of Poles | 4 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 18.5kW |
| Rated permanent current at AC-21, 400 V | 40A |
| Switching power at 400 V | 18.5kW |
| Rated permanent current at AC-23, 400 V | 40A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 40A |
| Amperage | 40A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 95.5mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
