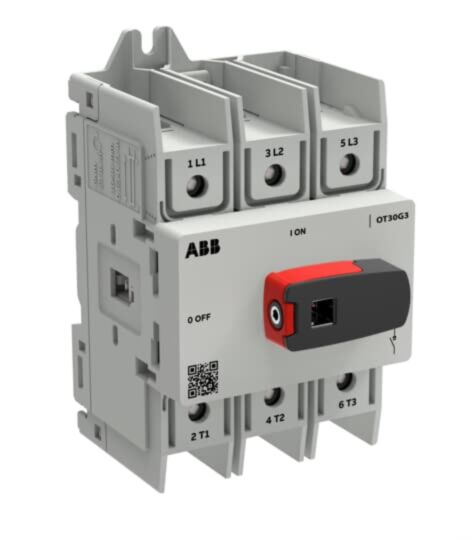

1SCA162539R1001 ABB OT30G3-3BS OT Plus 3 Pole 40A Panel Mounted Switch Disconnector
MPN: 1SCA162539R1001
Alt. SKU: OT30G3-3BS
Special Price
£76.34
£63.62
Regular Price
£117.46
Why Choose the 1SCA162539R1001
The ABB 1SCA162539R1001 is a 3 pole switch disconnector from the OT Plus range, with a rated current of 40 A and maximum rated operating voltage of 800 VAC.
It features a short-circuit current rating of up to 50 kA and a short-time withstand current of 2.5 kA, making it suitable for demanding isolation applications.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162539R1001
- Manufacturer part number: 1SCA162539R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 3 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 40 A
- Rated permanent current at AC-21, 400 V: 40 A
- Rated permanent current at AC-23, 400 V: 40 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 18.5 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 18.5 kW
Downloads
- Datasheet for 1SCA162539R1001
- Installation instructions for 1SCA162539R1001
- Enviromental product declaration for 1SCA162539R1001
- EU Declaration of Conformity for 1SCA162539R1001
- REACh declaration for 1SCA162539R1001
Trusted By Customers Worldwide
"Suitable for reliable disconnection up to 800 V with 40 A rated current." Engineering note
Frequently Asked Questions
What is the maximum rated operating voltage of the ABB 1SCA162539R1001 switch disconnector?
The maximum rated operating voltage is 800 VAC.
How many poles does the 1SCA162539R1001 have?
This model has 3 poles.
What is the short-circuit current rating of this switch disconnector?
It is rated for a conditioned short-circuit current of 50 kA.
| Alternative Product SKU | OT30G3-3BS |
|---|---|
| Manufacturer Part Number | 1SCA162539R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925721 |
| Number of Poles | 3 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 18.5kW |
| Rated permanent current at AC-21, 400 V | 40A |
| Switching power at 400 V | 18.5kW |
| Rated permanent current at AC-23, 400 V | 40A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 40A |
| Amperage | 40A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 70mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
