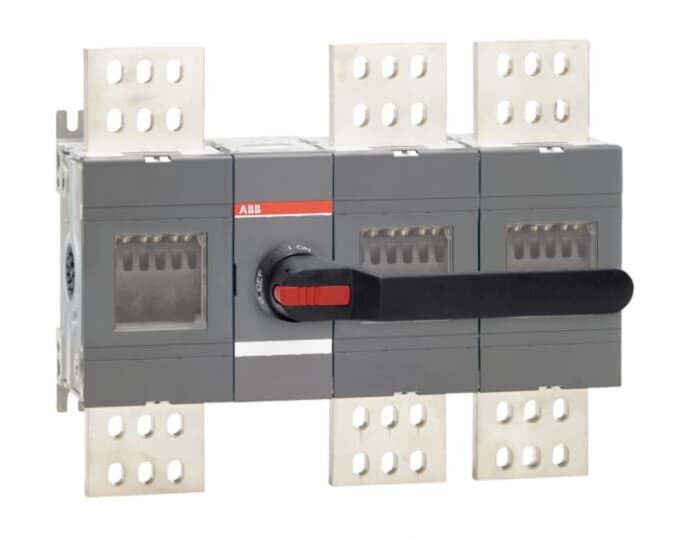

1SCA162453R1001 ABB OTHV2000E12P 3 Pole 800VAC to 1000VAC 2000A Switch Disconnector
MPN: 1SCA162453R1001
Alt. SKU: OTHV2000E12P
Why Choose the OTHV2000E12P [1SCA162453R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800VAC systems. It features a robust construction for reliable isolation and safe operation. The unit includes both shaft and handle, ensuring straightforward installation and user control.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current: 2000 A at 800 V AC.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Width: Lug terminals, 100 mm wide.
- Mechanical Durability: 6000 operations.
- Rated Short-Circuit Making Capacity: 176 kA at 1000 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for this product?
The maximum rated operational current is 2000 A at 800 V AC.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals that are 100 mm wide.
What is the degree of protection for this switch disconnector?
The degree of protection is Front IP00.
How many operations can the switch disconnector endure mechanically?
The mechanical durability is rated for 6000 operations.
What is the rated short-circuit making capacity?
The rated short-circuit making capacity is 176 kA at 1000 V.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV2000E12P |
|---|---|
| Manufacturer Part Number | 1SCA162453R1001 |
| Manufacturer | ABB |
| Barcode | 6417019924700 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 2000A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 376.5mm |
| Width | 472.5mm |
| Depth | 145.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
