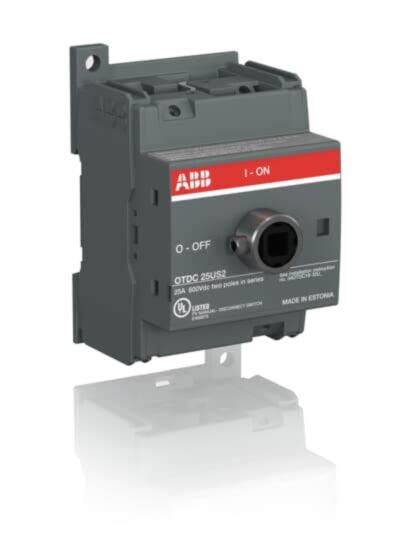

1SCA134378R1001 ABB OTDC25US2 2 Pole 1000VDC 40A Switch Disconnector
MPN: 1SCA134378R1001
Alt. SKU: OTDC25US2
Why Choose the OTDC25US2 [1SCA134378R1001]
The OTDC25US2 PV disconnect switch is designed for reliable isolation in photovoltaic systems. It features a base mounting configuration and a US single-wire break mechanism. The switch is rated for 25 A at 600 VDC (UL) and 25 A at 660 VDC (IEC), with a reduced rating of 16 A at 1000 VDC (IEC). A terminal bolt kit is included for secure connections; however, the handle and shaft must be ordered separately to complete the assembly. This switch is suitable for single-circuit applications requiring robust and compliant DC disconnection.
Technical Specification
- Function: Photovoltaic disconnect switch, US single-wire break.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 25 A at 660 V DC.
- Contact Configuration: 2 poles, single circuit.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size Range: Screw terminals, 2.5 to 16 mm² (12 to 6 AWG).
- Mounting Type: Base and DIN-rail mounting.
- Mechanical Details: Shaft diameter 6 mm; tightening torque 1.2 to 1.4 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the OTDC25US2 PV Disconnect Switch?
The OTDC25US2 is a photovoltaic disconnect switch designed for US single-wire break applications.
What are the mounting options for this disconnect switch?
The switch can be mounted on a base or DIN-rail.
What is the cable capacity for the terminal connections?
The terminal type is screw terminals, accommodating cable sizes from 2.5 to 16 mm² (12 to 6 AWG).
What are the voltage and current ratings for the OTDC25US2?
It has a rated operational voltage of 1000 V DC and a rated operational current of 25 A at 660 V DC.
What is the degree of protection for this switch?
The degree of protection is IP20 for the front of the switch.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDC25US2 |
|---|---|
| Manufacturer Part Number | 1SCA134378R1001 |
| Manufacturer | ABB |
| Barcode | 6417019631790 |
| Number of Poles | 2 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Rated permanent current Iu | 40A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP20 |
| Nema Rating | 1 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 89mm |
| Width | 54.5mm |
| Depth | 64mm |
| HS Code | 85365080 |
| Country of Manufacture | Estonia |
