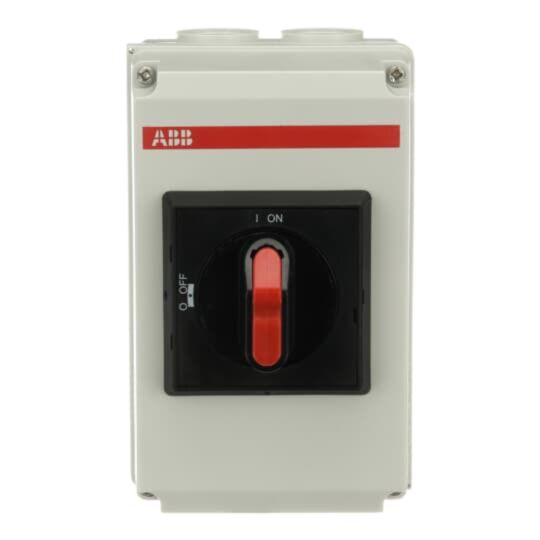

1SCA125154R1001 ABB OTDCP25S12M 3 Pole 1000VDC 25A Switch Disconnector
MPN: 1SCA125154R1001
Alt. SKU: OTDCP25S12M
Special Price
£132.58
£110.48
Regular Price
£203.96
Why Choose the OTDCP25S12M [1SCA125154R1001]
The OTDCP series features a robust enclosure constructed from glass-reinforced polycarbonate, offering excellent mechanical strength and durability. It is UV stabilised and rated IP65, providing reliable protection against low-pressure water jets, making it suitable for both indoor and outdoor installations. Cable entries are threaded with knockout holes designed to accommodate two parallel cables from either the top or bottom, ensuring flexible wiring options. The handle is designed for security, allowing up to three padlocks, and the cover includes an interlock mechanism that can be overridden only with a specialised tool. This enclosure is ideal for applications such as solar panel systems and DC battery installations, where secure and weather-resistant protection is essential.
Technical Specification
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 25 A (DC-21B).
- Number of Poles: 3P.
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Enclosure Material: Glass reinforced polycarbonate, UV protected.
- Impulse Withstand Voltage: 8 kV.
- Rated Insulation Voltage: 1000 V (IEC/EN 60664-1).
- Terminal Type and Capacity: Screw clamp, 2.5 to 16 mm².
- Cable Entries: Threaded M20, two entries per side (top and bottom).
- Handle: Padlockable selector handle with capacity for three padlocks.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the degree of protection for the OTDCP series enclosure?
The OTDCP series enclosure has a degree of protection rated at IP65, making it suitable for both indoor and outdoor use.
What is the rated operational voltage and current for this product?
The rated operational voltage is 1000 V DC, and the rated operational current is 25 A (DC-21B).
What type of cable entries does the enclosure have?
The enclosure features threaded M20 cable entries with two entries per side, allowing for parallel cables from both the top and bottom.
What is the terminal type and capacity for the OTDCP series?
The terminal type is screw clamp, with a capacity ranging from 2.5 to 16 mm².
Can the handle be secured, and how many padlocks can it accommodate?
Yes, the handle is padlockable and can accommodate up to three padlocks.
Is the enclosure suitable for solar panel applications?
Yes, the OTDCP series enclosure is typically used for applications such as solar panels and DC batteries.
What material is the enclosure made from?
The enclosure is made from glass reinforced polycarbonate and is UV protected.
| Alternative Product SKU | OTDCP25S12M |
|---|---|
| Manufacturer Part Number | 1SCA125154R1001 |
| Manufacturer | ABB |
| Barcode | 6417019554112 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Black |
| Rated permanent current Iu | 25A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
