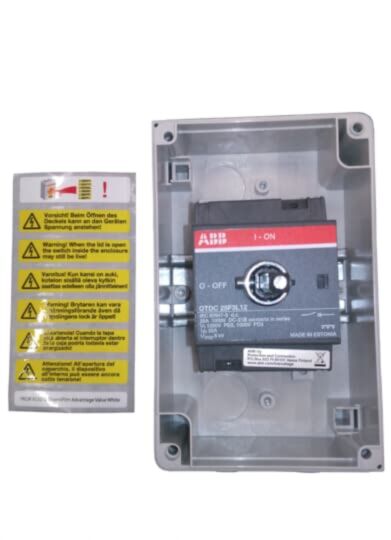

1SCA125151R1001 ABB OTDCP25SA12M 3 Pole 1000VDC 25A Switch Disconnector
MPN: 1SCA125151R1001
Alt. SKU: OTDCP25SA12M
Special Price
£139.55
£116.29
Regular Price
£214.69
Why Choose the OTDCP25SA12M [1SCA125151R1001]
The OTDCP series features a robust enclosure constructed from glass-reinforced polycarbonate, offering enhanced mechanical strength and durability. It is UV stabilised and rated to IP65, providing reliable protection against low-pressure water jets and suitable for both indoor and outdoor installations. Cable entries are threaded and include knock-out holes accommodating two parallel cables at both the top and bottom, ensuring flexible wiring options. The handle is designed to accept up to three padlocks for secure access control, while the cover incorporates an interlock mechanism that can be overridden only with a specialised tool. This enclosure is ideally suited for applications such as solar panel systems and DC battery installations.
Technical Specification
- Function: 3-pole selector handle for DC applications, suitable for solar panels and batteries.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current (DC-21B): 25 A.
- Contact Configuration: 3 poles, no auxiliary contacts.
- Insulation Voltage (Ui): 1000 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Terminal Type and Wire Size: Screw clamp terminals for 2.5 to 16 mm² conductors.
- Enclosure Material: UV protected, rigid glass reinforced polycarbonate plastic.
- Mounting Type: Base mounting with padlockable handle for three padlocks.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the OTDCP series enclosure?
The OTDCP series enclosure functions as a 3-pole selector handle for DC applications, specifically designed for solar panels and batteries.
What is the rated operational voltage and current for this product?
The rated operational voltage is 1000 V DC, and the rated operational current is 25 A (DC-21B).
What is the degree of protection for the enclosure?
The enclosure has a degree of protection rated at IP65, making it suitable for both indoor and outdoor use.
What type of cable entries does the enclosure have?
The enclosure features threaded cable entries with knock out holes for two parallel cables, accessible from both the top and bottom.
What is the terminal type and wire size compatibility?
The enclosure uses screw clamp terminals compatible with conductors ranging from 2.5 to 16 mm².
How is the enclosure mounted?
The enclosure is designed for base mounting and includes a padlockable handle that can accommodate three padlocks.
What materials are used in the enclosure's construction?
The enclosure is made from UV protected, rigid glass reinforced polycarbonate plastic.
| Alternative Product SKU | OTDCP25SA12M |
|---|---|
| Manufacturer Part Number | 1SCA125151R1001 |
| Manufacturer | ABB |
| Barcode | 6417019554082 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Red |
| Rated permanent current Iu | 25A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
