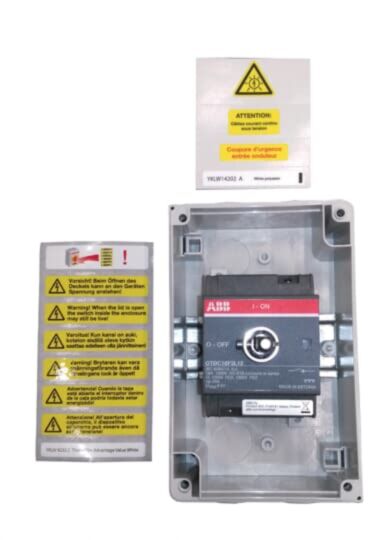

1SCA125150R1001 ABB OTDCP16SA12M 3 Pole 1000VDC 16A Switch Disconnector
MPN: 1SCA125150R1001
Alt. SKU: OTDCP16SA12M
Special Price
£122.32
£101.93
Regular Price
£188.18
Why Choose the OTDCP16SA12M [1SCA125150R1001]
The OTDCP series features a robust enclosure constructed from glass-reinforced polycarbonate, offering enhanced durability and impact resistance. It is UV stabilised and rated to IP65, ensuring reliable protection against low-pressure water jets for both indoor and outdoor installations. Cable entries are threaded with knockout holes designed to accommodate two parallel cables from either the top or bottom, facilitating flexible wiring options. The enclosure includes a padlockable handle capable of securing up to three padlocks, while the cover is interlocked with an override mechanism accessible via a specialised tool. This enclosure is ideally suited for applications such as solar panel systems, DC battery installations, and other renewable energy setups requiring secure and weatherproof protection.
Technical Specification
- Function: 3-pole selector handle with solar application.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 16 A (DC-21B, 1000 V).
- Insulation Voltage: 1000 V (IEC/EN 60664-1).
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP65 (suitable for indoor and outdoor use).
- Terminal Type and Size: Screw clamp terminals, 2.5 to 16 mm².
- Cable Entries: 2 x M20 top and 2 x M20 bottom, threaded knockouts.
- Enclosure Material: UV-protected, rigid glass reinforced polycarbonate.
- Mounting: Base mounting with padlockable handle for three padlocks.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the degree of protection for the enclosure?
The enclosure has a degree of protection rated at IP65, making it suitable for both indoor and outdoor use.
What is the rated operational voltage and current for this product?
The rated operational voltage is 1000 V DC, and the rated operational current is 16 A (DC-21B, 1000 V).
What type of terminals does the enclosure use?
The enclosure features screw clamp terminals that accommodate cable sizes from 2.5 to 16 mm².
How many cable entries does the enclosure have?
The enclosure has two threaded cable entries at the top and two at the bottom, with knockouts for parallel cables.
Can the handle be secured?
Yes, the handle is padlockable and designed to accommodate up to three padlocks.
What materials are used in the enclosure construction?
The enclosure is made from UV-protected, rigid glass reinforced polycarbonate.
Is there any conformity information available?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDCP16SA12M |
|---|---|
| Manufacturer Part Number | 1SCA125150R1001 |
| Manufacturer | ABB |
| Barcode | 6417019554075 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Red |
| Rated permanent current Iu | 16A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
