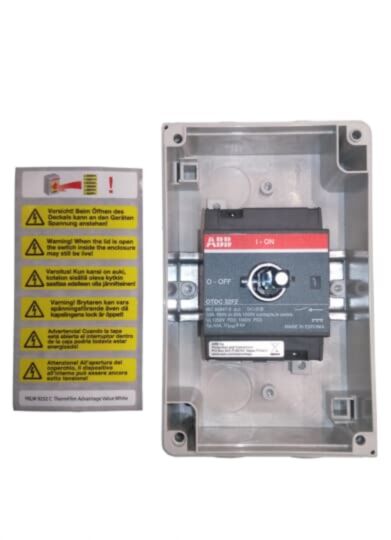

1SCA125128R1001 ABB OTDCP32SA11M 2 Pole 1000VDC 32A Switch Disconnector
MPN: 1SCA125128R1001
Alt. SKU: OTDCP32SA11M
Special Price
£97.12
£80.93
Regular Price
£149.40
Why Choose the OTDCP32SA11M [1SCA125128R1001]
The OTDCP series features a robust enclosure constructed from glass-reinforced polycarbonate, offering high mechanical strength and durability. It is UV stabilised and rated to IP65, providing reliable protection against low-pressure water jets, making it suitable for both indoor and outdoor installations. Cable entries are threaded with knockout holes designed to accommodate two parallel cables from either the top or bottom, ensuring flexible wiring options. The handle is designed to accept up to three padlocks for enhanced security, and the cover includes an interlock mechanism that can be overridden using a specialised tool. This enclosure is ideal for applications such as solar panel systems, DC battery installations, and other renewable energy or DC power setups.
Technical Specification
- Function: 2-pole switch disconnector with selector handle.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 32 A at 600 V DC, 20 A at 1000 V DC.
- Contact Configuration: 2P, no auxiliary contacts (0 NO, 0 NC).
- Insulation Voltage: 1000 V (IEC/EN 60664-1).
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP65, suitable for indoor and outdoor use.
- Terminal Type and Capacity: Screw terminals, 2.5–16 mm².
- Enclosure Material and Durability: UV-protected glass reinforced polycarbonate, padlockable handle for three padlocks.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTDCP series enclosure?
The rated operational voltage is 1000 V DC.
What is the maximum current rating for this product?
The maximum current rating is 32 A at 600 V DC and 20 A at 1000 V DC.
What type of cable entries does the enclosure support?
The enclosure has threaded cable entries with knock out holes for 2 parallel cables from both the top and bottom.
Is the enclosure suitable for outdoor use?
Yes, the enclosure is UV protected and has a degree of protection rated at IP65, making it suitable for both indoor and outdoor use.
What is the terminal capacity for the screw terminals?
The terminal capacity is 2.5–16 mm².
How many padlocks can the handle accommodate?
The handle can accommodate up to three padlocks.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDCP32SA11M |
|---|---|
| Manufacturer Part Number | 1SCA125128R1001 |
| Manufacturer | ABB |
| Barcode | 6417019553849 |
| Number of Poles | 2 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Red |
| Rated permanent current Iu | 32A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
