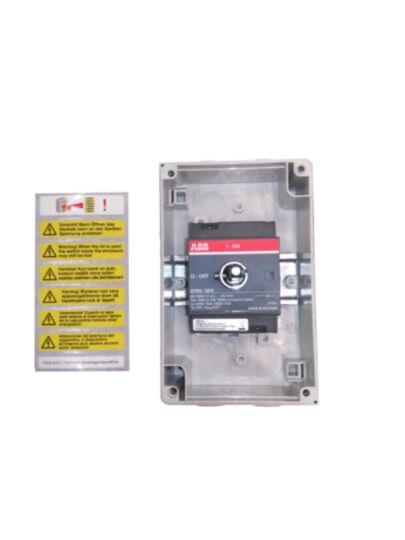

1SCA125126R1001 ABB OTDCP16SA11M 2 Pole 1000VDC 16A Switch Disconnector
MPN: 1SCA125126R1001
Alt. SKU: OTDCP16SA11M
Special Price
£63.43
£52.86
Regular Price
£97.60
Why Choose the OTDCP16SA11M [1SCA125126R1001]
The OTDCP series features a robust enclosure constructed from UV-resistant, glass-reinforced polycarbonate, ensuring durability in both indoor and outdoor environments. Rated to IP65, it provides reliable protection against low-pressure water jets. Cable entries are threaded and include knock-out holes to accommodate two parallel cables from either the top or bottom, enhancing installation flexibility. The handle is designed to accept up to three padlocks for secure access control, while the cover incorporates an interlock mechanism that can be overridden only with a specialised tool. This enclosure is ideally suited for applications such as solar panel systems and DC battery installations, where secure, weatherproof housing is essential.
Technical Specification
- Voltage Rating: 1000 V main circuit operational voltage.
- Current Rating: 16 A conventional thermal current; 16 A at 600 V DC, 10 A at 1000 V DC.
- Contact Configuration: 2 poles (2P).
- Insulation & Impulse Ratings: Rated insulation voltage 1000 V; rated impulse withstand voltage 8 kV.
- Degree of Protection: IP65, suitable for indoor and outdoor applications.
- Terminal Type & Capacity: Screw clamps for 2.5 to 16 mm² cables; tightening torque 1.2–1.4 N·m.
- Enclosure Material: UV protected, rigid glass reinforced polycarbonate plastic.
- Cable Entry: Threaded knock-out holes top and bottom, 2 cable outlets per side (2xM20).
- Mechanical Features: Padlockable selector handle for up to three padlocks; cover interlocked with defeat option via special tool.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the voltage rating of the OTDCP series enclosure?
The voltage rating is 1000 V for the main circuit operational voltage.
What is the current rating for the enclosure?
The current rating is 16 A conventional thermal current; 16 A at 600 V DC, and 10 A at 1000 V DC.
What type of cables can be used with this enclosure?
The enclosure accommodates screw clamps for cables ranging from 2.5 to 16 mm².
Is the enclosure suitable for outdoor use?
Yes, the enclosure is UV protected and has an IP65 rating, making it suitable for both indoor and outdoor applications.
How many padlocks can be used with the handle?
The handle is designed to be padlockable for up to three padlocks.
What is the degree of protection for this enclosure?
The enclosure has an IP65 rating, providing protection against low-pressure water jets.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDCP16SA11M |
|---|---|
| Manufacturer Part Number | 1SCA125126R1001 |
| Manufacturer | ABB |
| Barcode | 6417019553825 |
| Number of Poles | 2 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Red |
| Rated permanent current Iu | 16A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
