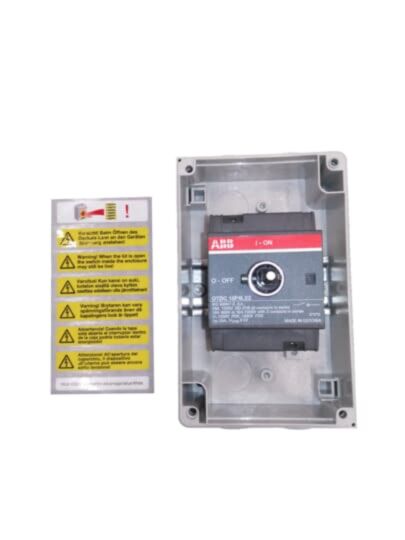

1SCA125095R1001 ABB OTDCP16S22M 4 Pole 1000VDC 16A Switch Disconnector
MPN: 1SCA125095R1001
Alt. SKU: OTDCP16S22M
Special Price
£140.39
£116.99
Regular Price
£215.99
Why Choose the OTDCP16S22M [1SCA125095R1001]
The OTDCP series features a robust enclosure constructed from glass-reinforced polycarbonate, offering excellent durability and UV resistance for both indoor and outdoor installations. It is rated to IP65, providing protection against low-pressure water jets. Cable entries are threaded and include knockout holes to accommodate two parallel cables from both the top and bottom. The handle is designed for security, allowing up to three padlocks, and the cover incorporates an interlock mechanism that can be overridden with a specialised tool. This enclosure is ideally suited for applications such as solar panel systems and DC battery installations, ensuring reliable protection and ease of maintenance.
Technical Specification
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current DC-21B: 16 A.
- Number of Poles: 4P.
- Degree of Protection: IP65 (dust tight and protected against low-pressure water jets).
- Enclosure Material: UV protected glass reinforced polycarbonate.
- Rated Insulation Voltage (Ui): 1000 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Terminal Type and Size Range: Screw clamp terminals for 2.5 to 16 mm² conductors.
- Cable Entry: Threaded knock-out holes for 2 parallel cables top and bottom (2xM20 each side).
- Handle: Padlockable selector handle for up to three padlocks with interlocked cover.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the degree of protection for the OTDCP series enclosure?
The enclosure has a degree of protection rated at IP65, making it dust tight and protected against low-pressure water jets.
What is the maximum rated operational voltage for this product?
The maximum rated operational voltage is 1000 V DC.
What type of terminals does the OTDCP series use?
The enclosure features screw clamp terminals suitable for conductor sizes ranging from 2.5 to 16 mm².
How many cables can be connected to the enclosure?
The enclosure has threaded knock-out holes for two parallel cables, allowing for connections from both the top and bottom.
Can the handle be secured with a padlock?
Yes, the handle is padlockable and can accommodate up to three padlocks.
What materials are used in the construction of the enclosure?
The enclosure is made from UV protected glass reinforced polycarbonate.
What applications is the OTDCP series suitable for?
This enclosure is typically used for applications such as solar panels and DC batteries.
| Alternative Product SKU | OTDCP16S22M |
|---|---|
| Manufacturer Part Number | 1SCA125095R1001 |
| Manufacturer | ABB |
| Barcode | 6417019553511 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Type of control element | Turn button |
| Colour control element | Black |
| Rated permanent current Iu | 16A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP65 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 95mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
