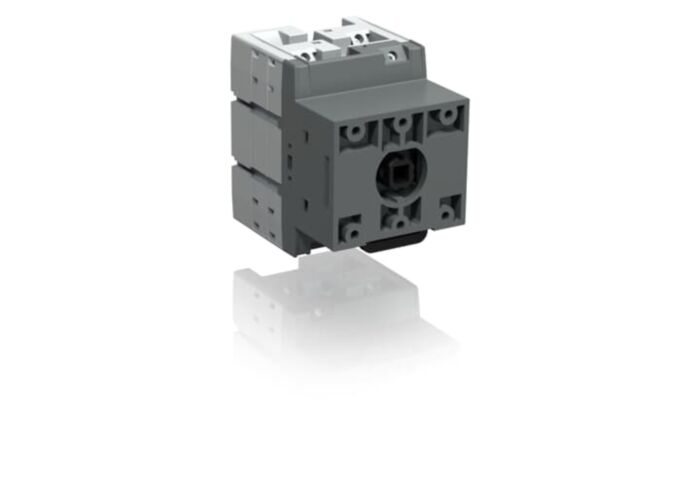

1SCA123840R1001 ABB OTDC16FT3 3 Pole 1000VDC 25A Switch Disconnector
MPN: 1SCA123840R1001
Alt. SKU: OTDC16FT3
Special Price
£94.06
£78.38
Regular Price
£144.70
Why Choose the OTDC16FT3 [1SCA123840R1001]
The OTDC16FT3 is a DC switch-disconnector rated at 1000 V DC and 16 A for single-circuit applications. It features door mounting for secure installation and includes a terminal bolt kit for reliable electrical connections. Please note that the handle and shaft are supplied separately, allowing for flexible configuration to suit specific operational requirements.
Technical Specification
- Function: DC switch-disconnector for single circuit operation.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current (DC-21B): 16 A.
- Contact Configuration: 3 poles (3P).
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection (Front): IP20.
- Terminal Type and Wire Size: Screw terminals, 2.5 to 16 mm² cable cross-section.
- Mounting Type: Door mounting.
- Operating Mechanism: Mechanism located on top of switch; handle and shaft not included.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the OTDC16FT3?
The OTDC16FT3 is a DC switch-disconnector designed for single circuit operation.
What is the rated operational voltage and current?
The rated operational voltage is 1000 V DC and the rated operational current is 16 A.
What is the contact configuration of this switch?
The contact configuration is 3 poles (3P).
What is the degree of protection for the OTDC16FT3?
The degree of protection for the front of the switch is IP20.
What type of terminals does the OTDC16FT3 use?
It uses screw terminals with a cable cross-section of 2.5 to 16 mm².
How is the OTDC16FT3 mounted?
The switch is designed for door mounting.
Are the handle and shaft included with the switch?
No, the handle and shaft need to be ordered separately.
| Alternative Product SKU | OTDC16FT3 |
|---|---|
| Manufacturer Part Number | 1SCA123840R1001 |
| Manufacturer | ABB |
| Barcode | 6417019545493 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Rated permanent current Iu | 25A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP20 |
| Nema Rating | 1 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 69mm |
| Width | 52.5mm |
| Depth | 75.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Estonia |
