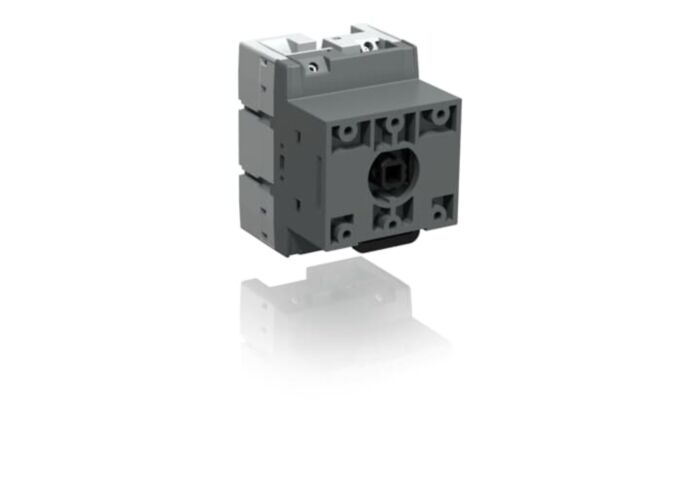

1SCA123839R1001 ABB OTDC16FT2 2 Pole 1000VDC 25A Switch Disconnector
MPN: 1SCA123839R1001
Alt. SKU: OTDC16FT2
Special Price
£69.04
£57.53
Regular Price
£106.21
Why Choose the OTDC16FT2 [1SCA123839R1001]
The OTDC16FT2 DC switch-disconnector is designed for door mounting and supports a single circuit with ratings of 16 A at 660 VDC and 10 A at 1000 VDC, compliant with IEC standards. It includes a terminal bolt kit for secure connections; however, the handle and shaft must be ordered separately. This device ensures reliable isolation in DC applications, suitable for integration into control panels and switchgear assemblies.
Technical Specification
- Function: DC switch-disconnector for single circuit.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current: 16 A at 660 V DC, 10 A at 1000 V DC.
- Contact Configuration: 2-pole (2P).
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size: Screw terminals for 2.5 to 16 mm² conductors.
- Mounting Type: Door mounting.
- Tightening Torque (Main Circuit): 1.2 to 1.4 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTDC16FT2?
The rated operational voltage is 1000 V DC.
What is the maximum current rating for this switch-disconnector?
The maximum current rating is 16 A at 660 V DC and 10 A at 1000 V DC.
What type of mounting is required for the OTDC16FT2?
This device is designed for door mounting.
What is the cable capacity for the terminals?
The terminals accommodate conductors from 2.5 to 16 mm².
What is the degree of protection for the OTDC16FT2?
The degree of protection is IP20 for the front.
What is the tightening torque for the main circuit?
The tightening torque should be between 1.2 to 1.4 N·m.
Are there any conformity standards for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDC16FT2 |
|---|---|
| Manufacturer Part Number | 1SCA123839R1001 |
| Manufacturer | ABB |
| Barcode | 6417019545486 |
| Number of Poles | 2 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Rated permanent current Iu | 25A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP20 |
| Nema Rating | 1 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 69mm |
| Width | 52.5mm |
| Depth | 64mm |
| HS Code | 85365080 |
| Country of Manufacture | Estonia |
