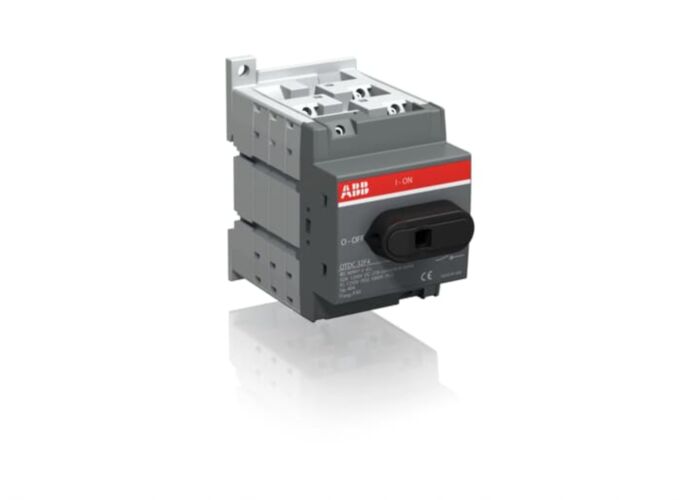

1SCA121463R1001 ABB OTDC32F4 4 Pole 1000VDC 45A Switch Disconnector
MPN: 1SCA121463R1001
Alt. SKU: OTDC32F4
Special Price
£123.80
£103.17
Regular Price
£190.46
Why Choose the OTDC32F4 [1SCA121463R1001]
The OTDC32F4 DC switch-disconnector is designed for reliable isolation in DC circuits, supporting up to 660 VDC at 32 A or 1000 VDC at 20 A in double circuit configurations. It features base mounting for secure installation and includes a terminal bolt kit for ease of connection. Please note that the handle and shaft are supplied separately to allow for flexible control options.
Technical Specification
- Function: DC switch-disconnector for double circuit applications.
- Rated Operational Current: 32 A at 660 V DC; 20 A at 1000 V DC.
- Contact Configuration: 4 poles, 2 circuits.
- Rated Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size: Screw terminals, suitable for 2.5 to 16 mm² cable cross-section.
- Mounting: Base and DIN-rail mounting options.
- Operating Mechanism: Mechanism located on top of the switch.
- Weight: 0.2 kg (0.5 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the OTDC32F4?
The OTDC32F4 is a DC switch-disconnector designed for double circuit applications.
What are the rated operational currents for this switch?
The rated operational current is 32 A at 660 V DC and 20 A at 1000 V DC.
What is the terminal type and cable capacity?
The switch features screw terminals suitable for cable cross-sections of 2.5 to 16 mm².
How can the OTDC32F4 be mounted?
The switch can be mounted on a base or DIN-rail.
What is the degree of protection for this product?
The degree of protection is IP20 for the front of the switch.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDC32F4 |
|---|---|
| Manufacturer Part Number | 1SCA121463R1001 |
| Manufacturer | ABB |
| Barcode | 6417019526188 |
| Number of Poles | 4 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 45A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 89mm |
| Width | 52.5mm |
| Depth | 89mm |
| HS Code | 85365080 |
| Country of Manufacture | Estonia |
