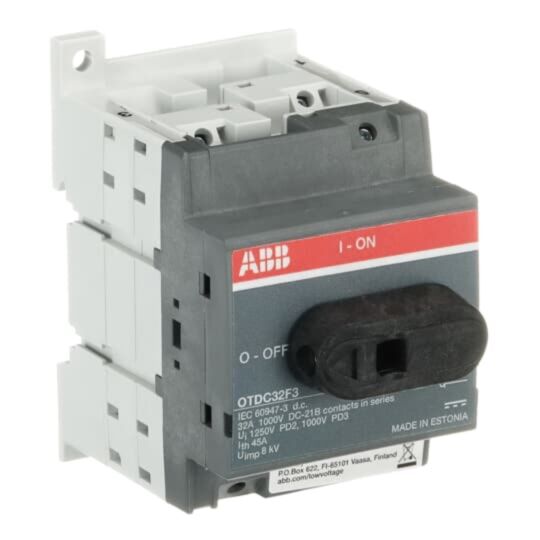

1SCA121459R1001 ABB OTDC32F3 3 Pole 1000VDC 45A Switch Disconnector
MPN: 1SCA121459R1001
Alt. SKU: OTDC32F3
Special Price
£92.88
£77.40
Regular Price
£142.88
Why Choose the OTDC32F3 [1SCA121459R1001]
The OTDC32F3 DC switch-disconnector is rated for 32 A at 1000 VDC, designed for single-circuit applications. It features base mounting for secure installation and includes a terminal bolt kit for reliable connections. Please note that the handle and shaft are supplied separately and must be ordered in addition to the unit.
Technical Specification
- Function: DC Switch-disconnector, single circuit, 3 poles.
- Rated Operational Voltage: 1000 V DC.
- Rated Operational Current (DC-21B): 32 A at 1000 V, 36 A at 600 V.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type: Screw terminals, suitable for cable cross-section 2.5 to 16 mm².
- Mounting: Base mounting or DIN-rail mounting.
- Contact Configuration: 3-pole switch.
- Operating Mechanism: Mechanism located on top of the switch, positive opening torque 0.4 to 0.8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTDC32F3?
The rated operational voltage is 1000 V DC.
What is the maximum current rating for the OTDC32F3?
The maximum current rating is 32 A at 1000 V DC and 36 A at 600 V.
What type of mounting options are available for this switch-disconnector?
The OTDC32F3 can be mounted on a base or on a DIN-rail.
What is the cable cross-section capacity for the terminals?
The terminals are suitable for cable cross-sections of 2.5 to 16 mm².
What is the degree of protection for the OTDC32F3?
The degree of protection is IP20 for the front of the switch.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTDC32F3 |
|---|---|
| Manufacturer Part Number | 1SCA121459R1001 |
| Manufacturer | ABB |
| Barcode | 6417019526140 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Built-in device fixed built-in technique |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 45A |
| Voltage | 1000VDC |
| Degree of protection (IP) | IP20 |
| Nema Rating | 1 |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 89mm |
| Width | 52.5mm |
| Depth | 77.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Estonia |
