1SBN083411R1000 ber65-4 connection sets for reversing ABB Contactors
MPN: 1SBN083411R1000
Alt. SKU: BER65-4
Special Price
£20.47
£17.06
Regular Price
£31.49
Why Choose the BER65-4 [1SBN083411R1000]

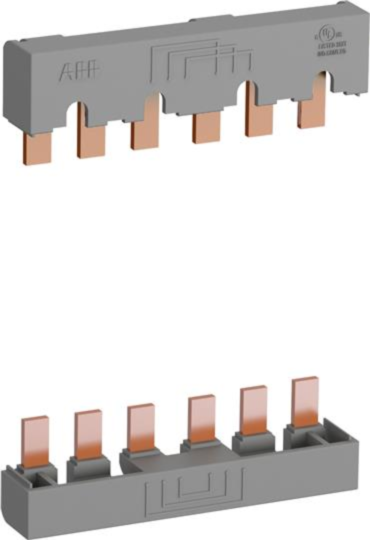

The BER65-4 connection set is designed for reversing contactors, providing a straightforward solution to link the main poles of two 3-pole AF40..AF65, AFC40..AFC65, or AFS40..AFS65 contactors installed side by side. This set comprises insulated, solid copper bars configured as one upstream and one downstream connection, ensuring reliable electrical continuity and ease of installation in reversing motor control applications.
Technical Specification
- Function: Connection set for reversing contactors, linking main poles of two 3-pole contactors side by side.
- Compatible Contactors: AF40..AF65, AFC40..AFC65, AFS40..AFS65 series.
- Rated Operational Voltage: 690 V AC main circuit.
- Rated Frequency: 50 / 60 Hz.
- Terminal Type: Screw terminals.
- Material: Insulated solid copper bars for reliable conductivity and durability.
- Standards Compliance: EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1.
- Weight: 0.175 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the BER65-4 connection set?
The BER65-4 is designed to connect the main poles of two 3-pole reversing contactors mounted side by side.
Which contactor series is compatible with the BER65-4?
The BER65-4 is compatible with AF40..AF65, AFC40..AFC65, and AFS40..AFS65 series contactors.
What is the rated operational voltage for the BER65-4?
The rated operational voltage is 690 V AC for the main circuit.
What type of terminals does the BER65-4 use?
The BER65-4 features screw terminals for secure connections.
What materials are used in the construction of the BER65-4?
The connection set is made from insulated solid copper bars, ensuring reliable conductivity and durability.
What are the weight specifications for the BER65-4?
The weight of the BER65-4 connection set is 0.175 kg.
What standards does the BER65-4 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBN083411R1000 |
|---|---|
| HS Code | 85389099 |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | BER65-4 |
| Barcode | 3471523130944 |
