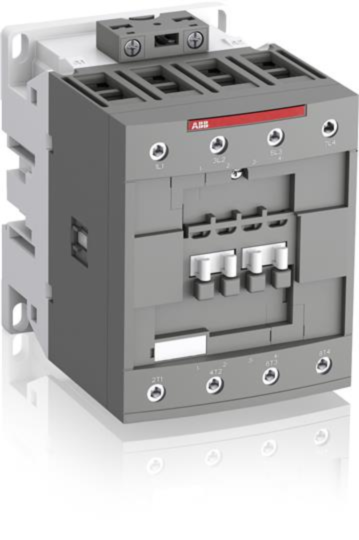

1SBL397201R1300 af80-22-00-13 37kw/80 amp 100-250v 50/60hz dc ABB Contactor
MPN: 1SBL397501R1300
Alt. SKU: AF80-22-00-13
Special Price
£392.56
£327.13
Regular Price
£603.94
Why Choose the AF80-22-00-13 [1SBL397501R1300]
The AF80-22-00-13 is a 4-pole contactor rated for 1000 V IEC and 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 37 kW at 400 V AC (AC-3) and switch power circuits up to 125 A (AC-1) or 105 A for UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 100-250 V AC/DC (50/60 Hz), accommodating significant voltage fluctuations to reduce panel energy consumption and maintain reliable operation in unstable supply conditions. Integrated surge protection enhances durability within a compact footprint. The block-type design allows straightforward expansion with add-on auxiliary contact blocks and a comprehensive selection of compatible accessories, ensuring versatile integration into industrial control systems.
Technical Specification
- Function: 4-pole contactor for motor control up to 37 kW at 400 V AC (AC-3), switching power circuits up to 125 A (AC-1).
- Rated Operational Voltage: Main circuit 1000 V IEC, 600 V UL/CSA.
- Rated Current: 125 A AC-1 at 690 V (40 °C), 80 A AC-3 at 400 V (60 °C), 105 A UL general use.
- Contact Configuration: 2 NO + 2 NC main contacts, no auxiliary contacts included.
- Insulation and Impulse Voltage: Rated insulation voltage 1000 V IEC, 600 V UL; impulse withstand voltage 8 kV.
- Protection Rating: Coil terminals IP20, main terminals IP10 (IEC 60529).
- Terminal Type and Capacity: Screw terminals; main circuit 6–70 mm² (rigid), 6–50 mm² (flexible with ferrule); control circuit 0.75–2.5 mm².
- Mounting: DIN rail TH35-15 or screw mounting (2 x M4 or M6).
- Mechanical and Electrical Durability: Max mechanical switching frequency 3600 cycles/hour; max electrical switching frequency 600 cycles/hour (AC-1).
- Coil Control Voltage: Wide range 100–250 V AC/DC at 50/60 Hz with low power consumption.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF80-22-00-13 contactor?
The AF80-22-00-13 contactor can control motors up to 37 kW at 400 V AC (AC-3).
What is the rated operational voltage for the AF80-22-00-13?
The rated operational voltage is 1000 V IEC and 600 V UL/CSA.
What is the terminal capacity for the main circuit?
The main circuit terminals can accommodate 6–70 mm² for rigid conductors and 6–50 mm² for flexible conductors with ferrules.
How can the AF80-22-00-13 be mounted?
The contactor can be mounted on a DIN rail TH35-15 or via screw mounting using 2 x M4 or M6 screws.
What type of terminals does the AF80-22-00-13 have?
The AF80-22-00-13 features screw terminals for both the main and control circuits.
What is the protection rating of the AF80-22-00-13?
The coil terminals have an IP20 rating, while the main terminals have an IP10 rating according to IEC 60529.
What should I refer to for standards and approvals of the AF80-22-00-13?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL397501R1300 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF80-22-00-13 |
| KW Rating | 37kW |
| Inbuilt Aux | 2 N/O 2 N/C |
| Barcode | 3471523133938 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
