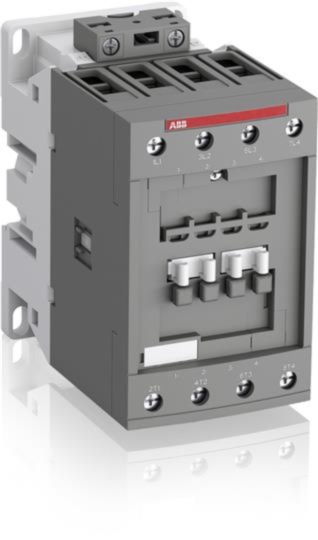

1SBL367201R1100 af52-40-00-11 22kw/52 amp 24-60v 50/60hz 20-60v dc ABB Contactor
MPN: 1SBL367201R1100
Alt. SKU: AF52-40-00-11
Special Price
£316.66
£263.88
Regular Price
£487.16
Why Choose the AF52-40-00-11 [1SBL367201R1100]
The AF52-40-00-11 is a 4-pole contactor rated for 690 V IEC or 600 V UL applications, featuring screw terminals for secure connections. It is designed to control motors up to 22 kW at 400 V AC (AC-3 duty) and switch power circuits up to 100 A (AC-1) or 80 A for UL general use. Utilising AF technology, this contactor supports a broad control voltage range of 24-60 V AC (50/60 Hz) and 20-60 V DC, accommodating significant voltage fluctuations while minimising panel energy consumption and ensuring reliable operation in unstable supply conditions. Integrated surge protection enhances durability, providing a compact and robust solution. The block-type design allows straightforward expansion with auxiliary contact blocks and a comprehensive selection of compatible accessories.
Technical Specification
- Function: 4-pole contactor for motor control and power circuit switching.
- Rated Operational Voltage: Up to 690 V IEC / 600 V UL.
- Current Ratings: 100 A AC-1 (690 V, 40 °C), 53 A AC-3 (415/400 V, 60 °C).
- Contact Configuration: 4 normally open main contacts, no auxiliary contacts.
- Insulation Voltage (Ui): 690 V per IEC, 600 V per UL/CSA standards.
- Impulse Withstand Voltage (Uimp): 6 kV.
- Degree of Protection: IP20 coil terminals, IP10 main terminals.
- Terminal Type and Size: Screw terminals; main circuit 4–35 mm² flexible/rigid, control circuit 0.75–2.5 mm² flexible/rigid.
- Mounting: DIN Rail TH35-15 or screw mounting (2 x M4 or M6).
- Mechanical Switching Frequency: 3600 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum motor control capacity of the AF52-40-00-11 contactor?
The AF52-40-00-11 contactor can control motors up to 22 kW at 400 V AC (AC-3).
What are the current ratings for the AF52-40-00-11 contactor?
The contactor has a current rating of 100 A for AC-1 (690 V, 40 °C) and 53 A for AC-3 (415/400 V, 60 °C).
What is the degree of protection for the AF52-40-00-11 contactor?
The degree of protection is IP20 for coil terminals and IP10 for main terminals.
What is the mounting method for the AF52-40-00-11 contactor?
The contactor can be mounted on a DIN Rail TH35-15 or via screw mounting using 2 x M4 or M6 screws.
What is the terminal type and size for the AF52-40-00-11 contactor?
The contactor features screw terminals with a main circuit capacity of 4–35 mm² and a control circuit capacity of 0.75–2.5 mm² for flexible/rigid cables.
Does the AF52-40-00-11 contactor have built-in surge protection?
Yes, the AF52-40-00-11 contactor includes built-in surge protection.
What standards does the AF52-40-00-11 contactor conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBL367201R1100 |
|---|---|
| Manufacturer | ABB |
| Alternative Product SKU | AF52-40-00-11 |
| KW Rating | 22kW |
| Inbuilt Aux | 4 N/O |
| Barcode | 3471523133617 |
| Product Lead Time | Please contact us for a delivery time |
Write Your Own Review
ABB AF Contactor RangeABB contactor range can be used to control power circuits up to a level of 690 V AC and 220 V DC. The main benefit of ABB's range of AF products are that only a few coils are needed for different control voltages used in many applications without having to change the coil. |
