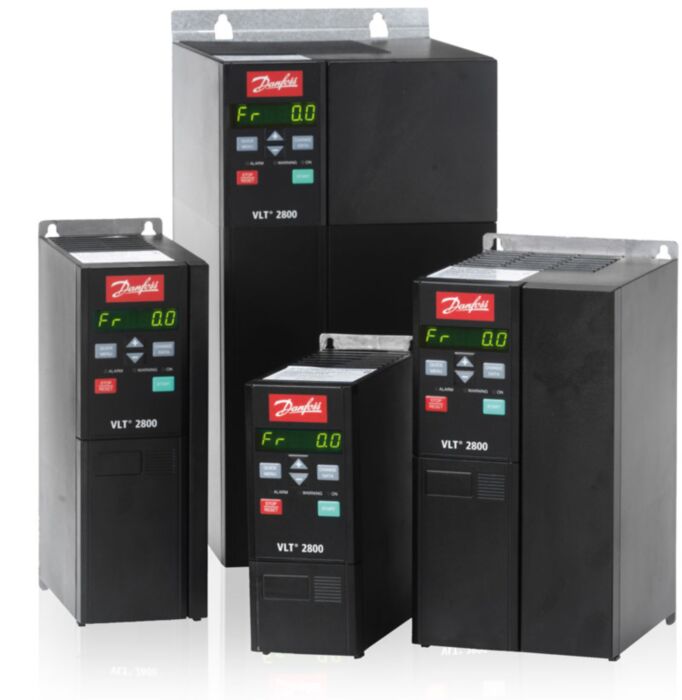

195N0037 VLT 2811 1.1KW/6Amps IP20 Standard Version
MPN: 195N0037
Alt. SKU: VLT2811PD2B20STR0DBF00A00C0
This product is discontinued. Please view this replacement item.
Why Choose the 195N0037?
The Danfoss 195N0037 (model code VLT2811PD2B20STR0DBF00A00C0) is a Variable speed drive (frequency converter) intended for panel installation where accurate motor control, repeatable commissioning, and reliable like-for-like replacement are required.
Configured with Power: 1.1kW / 1.5 HP, Current: 6 A, Supply: 200-240V AC, Enclosure: IP20, EMC/RFI: Without filter (No EMC) to support correct selection and like-for-like replacements.
Key Benefits
- Variable speed drive (frequency converter) for correct application matching
- Configured with Power: 1.1kW / 1.5 HP, Current: 6 A, Supply: 200-240V AC, Enclosure: IP20, EMC/RFI: Without filter (No EMC).
- Suitable for panel installations where reliable commissioning is required.
- SKU and model code shown for procurement and like for like replacements.
Technical Specifications
- Power Rating: 1.1kW / 1.5 HP
- Mains Voltage U(in): 200-240V AC
- Enclosure Class: IP20
- RFI Filter: Without filter (No EMC)
- Fieldbus Option: Without fieldbus option
- Display: Built In Display (SLCP)
- Height [mm]: 200
- Width w/ no C options [mm]: 75
- Depth [mm]: 168
- Net weight: 1.7 Kilogram
- EAN: 5702427033283
- Application Option: No application option
- Coating: Without coating
- Dedicated Application: Process
- Enclosure Type: Bookstyle
- Frame Size: A-Frame
- Gross weight: 2 Kilogram
- Hardware Configuration: Standard
- Modelcode01: VLT2811PD2B20STR0DBF00A00C0
- Product Group: VLT®
- Typecode Part 1: VLT2811PD2B20STR0DBF00A00C0
- VLT Series: 2800
Frequently Asked Questions
What supply does Danfoss 195N0037 require?
It is specified for 200-240V AC. Match this to your incoming mains.
What is the rated power for 195N0037?
The listed power rating is 1.1kW / 1.5 HP. Confirm sizing against your motor and duty cycle.
What enclosure class is it?
It is listed as IP20 and is intended for installation in a suitable cabinet/enclosure as required.
Does it include an EMC/RFI filter?
The configuration is shown as Without filter (No EMC). Choose a filtered variant or external filtering if your site requires it.
Where is 195N0037 typically installed?
In control panels or cabinets. Follow Danfoss installation guidance for clearances, earthing, and protective devices.
What does IP20 mean for 195N0037?
IP20 indicates protection against finger contact and solid objects over 12.5 mm. Install in a suitable enclosure to meet your site requirements.
| Manufacturer Part Number | 195N0037 |
|---|---|
| Filter | No Filter |
| Degree of protection (IP) | IP20 |
| KW Rating | 1.1kW |
| VSD Range | Danfoss VLT 2800 |
| Manufacturer | Danfoss |
| Alternative Product SKU | VLT2811PD2B20STR0DBF00A00C0 |
