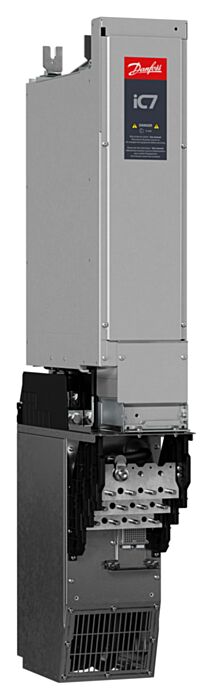

137U3800 Danfoss 630kW iC7-Automation Inverter module
MPN: 137U3800
Alt. SKU: IC7-60SAIN05-1100E00F4+AEC2+BAPR+BEXX+BK50+BL50+DAAU
Special Price
£45,017.28
£37,514.40
Regular Price
£56,271.60
Why Choose the 137U3800?
The Danfoss 137U3800 (model code IC7-60SAIN05-1100E00F4+AEC2+BAPR+BEXX+BK50+BL50+DAAU) is a Drive option / expansion module intended for panel installation where accurate motor control, repeatable commissioning, and reliable like-for-like replacement are required.
Configured with Power: 630 kW/900 HP, Current: 1100 A, Supply: 380-500 V AC to support correct selection and like-for-like replacements.
Key Benefits
- Drive option / expansion module for correct application matching
- Configured with Power: 630 kW/900 HP, Current: 1100 A, Supply: 380-500 V AC.
- Suitable for panel installations where reliable commissioning is required.
- SKU and model code shown for procurement and like for like replacements.
Technical Specifications
- Product type: Inverter module, INU
- Power rating: 630 kW/900 HP
- Mains voltage: 380-500 V AC
- Net weight: 218 Kilogram
- EAN: 5715253721835
- AC voltage: 3X0-400/460/500VAC
- Additional drive features 1: None
- Additional drive features 2: None
- Additional drive features 3: None
- Additional drive features 4: None
- Additional drive features 5: None
- check if complete: OK
- Communication interface, X0: Ethernet port, no protocol
- Communication interface, X1/X2: PROFINET RT OS7PR
- Continous current IH (1/5min): 913A(400VAC)/855A(460VAC)
- Continous current IL (1/5min): 1100A(400VAC)/1030A(460VAC)
- Control panel: None
- Control panel cable length: None
- Control panel mounting type: None
- Control unit cable length: 5.0 m (16 ft), Fiber
- Cooling circuit connector type: Not relevant
- Cooling circuit hose length: Not relevant
- Cooling type: Air Cooled
- Current rating: 1100 A
- Customer specific application: None
- Customer-specific label: None
- Customization file package ID: No customization
- DC Bus current: 1280A(540VDC)
- DC Bus voltage: 465-740VDC
- DC fuses and devices: None
- DC power: 691kW(540VDC)
- Documentation language: Multi-language
- EMC category: C4 category
- Enclosure rating: IP00 / OPEN TYPE
- Extra environmental protection: Coated boards
- Frame designation: 2xIR10
- Functional safety: None, not upgradable
- Gross weight: 278 Kilogram
- Help Counter: 1
- High speed enabled: No
- Integration unit: Standard, with CM filter
- Language package: Global
- Main unit Depth: 553MM/21.8IN
- Main unit Height: 1302MM/51.3IN
- Main unit Width: 2X235MM/9.3IN
- Mains input device: None
- Marine construction: None
- Modelcode01: IC7-60SAIN05-1100E00F4
- Modelcode02: +AEC2
- Modelcode03: +BAPR+BEXX
- Modelcode04: +BK50+BL50
- Modelcode06: +DAAU
- Nominal AC current: 1123A(400VAC)/1052A(460VAC)
- Option slot A: None, without mounting p
- Option slot B: None, without mounting plate
- Option slot C: None, without mounting plate
- Option slot D: None, without mounting plate
- Option slot E: None, without mounting plate
- Option slot F: None, without mounting plate
- Option slot G: None, without mounting plate
- Option slot H: None, without mounting plate
- Option slot I: None, without mounting plate
- Option slot J: None, without mounting plate
- Output frequency: 0-590Hz
- Overload current IH (1/5min): 1370A(400VAC)/1283A(460VAC)
- Overload current IL (1/5min): 1210A(400VAC)/1133A(460VAC)
- Product category: System module, air-cooled
- Product Category -DrivesSymbol: System module, air-cooled
- Product group: iC7-60
- Product series: iC7-Automation
- Product software ID: Latest released version
- Product specific marine cert.: None
- Product Type - DrivesSymbol: Inverter module
- Protection rating: IP00/Open Type
- Salescode part 1: IC7-60SAIN05-1100E00F4
- Salescode part 2: +AEC2
- Salescode part 3: +BAPR+BEXX
- Salescode part 4: +BK50+BL50
- Salescode part 5: +DAAU
- Shipping package: Cardboard box package
- Short circuit current rating: 100kA
- Standard I/O: None
- StarCoupler board cable length: 5.0 m (16 ft), Fiber
- Start current Imax (3sec): 1553A
- Storage temperature: -40...70°C/-40...158°F
- Technical documentation: None
- Typecode Part 1: 7SM-AUSAIN05-1100E00F4
- Typecode Part 2: -000144675
- Typical motor power PH2 (150%): 500kW(400VAC)/650Hp(460VAC)
- Typical motor power PL (110%): 630kW(400VAC)/850Hp(460VAC)
Frequently Asked Questions
What supply does Danfoss 137U3800 require?
It is specified for 380-500 V AC. Match this to your incoming mains.
What is the rated power for 137U3800?
The listed power rating is 630 kW/900 HP. Confirm sizing against your motor and duty cycle.
Where is 137U3800 typically installed?
In control panels or cabinets. Follow Danfoss installation guidance for clearances, earthing, and protective devices.
What does IP20 mean for 137U3800?
IP20 indicates protection against finger contact and solid objects over 12.5 mm. Install in a suitable enclosure to meet your site requirements.
Can 137U3800 be used for pump and fan applications?
Yes, when correctly sized and commissioned, frequency converters are commonly used to control pumps and fans for smoother starts and improved process control.
What should I check before ordering a like for like replacement for 137U3800?
Confirm supply voltage, power rating, current rating, enclosure class, and required EMC filtering or communications options match the existing installation.
| Manufacturer Part Number | 137U3800 |
|---|---|
| Barcode | 5715253721835 |
| Communication | PROFINET RT OS7PR |
| Packed Quantity | 1 |
| Height | 1302mm |
| Width | 2x235mm |
| Depth | 553mm |
| Amperage | 1100A |
| A option | Option slot not available |
| B option | Option slot not available |
| C Option | None, without mounting plate |
| D Option | None, without mounting plate |
| E Option | None, without mounting plate |
| F Option | None, without mounting plate |
| G Option | None, without mounting plate |
| Brake - Safe-Stop | No brake chopper |
| Continous current IH (1/5min) | 913A(400VAC)/855A(460VAC) |
| Continous current IL (1/5min) | 1100A(400VAC)/1030A(460VAC) |
| Coating PCB | Coated PCB |
| Control Panel | None |
| Control Panel Included | Yes |
| Control panel cable length | None |
| Control unit cable length | 5.0 m (16 ft), Fiber |
| Cooling | Air Cooling |
| DC Bus current | 1280A(540VDC) |
| DC Bus voltage | 465-740VDC |
| DC fuses and devices | No DC input device |
| DC power | 691KW(540VDC) |
| Frame Size | 2xIR10 |
| Functional safety | None, not upgradable |
| HP Rating | 900 |
| Input Voltage | 0-400/460/500VAC |
| Integration unit | Standard, with CM filter |
| Degree of protection (IP) | IP00 / OPEN TYPE |
| KW Rating | 630kW |
| Nominal AC current | 1123A(400VAC)/1052A(460VAC) |
| Output Frequency | 599Hz |
| Overload current IH (1/5min) | 1370A(400VAC)/1283A(460VAC) |
| Overload current IL (1/5min) | 1210A(400VAC)/1133A(460VAC) |
| Short Circuit Release | 100kA |
| StarCoupler board cable length | 5.0 m (16 ft), Fiber |
| VSD Range | Danfoss iC7-Automation |
| Typical motor power PH2 (150%) | 500KW(400V)/650HP(460V) |
| Manufacturer | Danfoss |
| Start current Imax (3sec) | 1553A |
| Typical motor power PL (110%) | 630KW(400V)/850HP(460V) |
| Alternative Product SKU | IC7-60SAIN05-1100E00F4+AEC2+BAPR+BEXX+BK50+BL50+DAAU |
