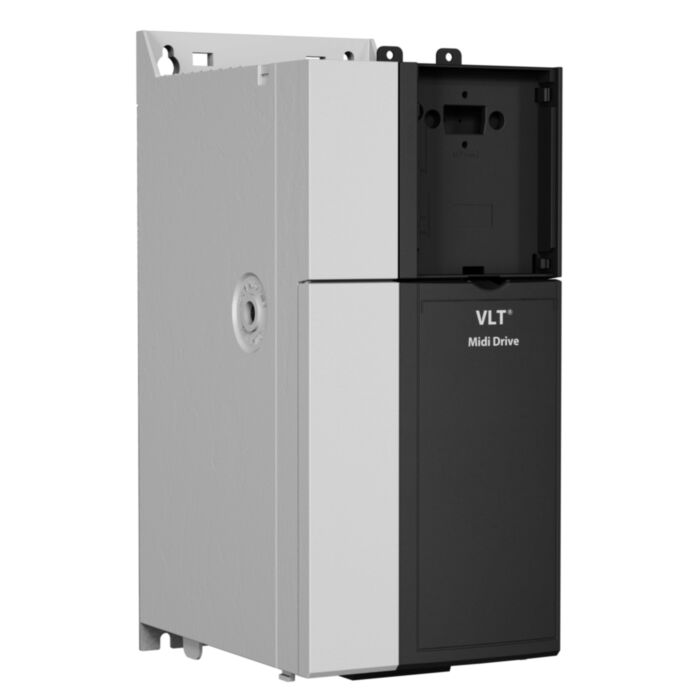

134U7966 Danfoss VLT® Midi Drive FC-280 IP20
MPN: 134U7966
Alt. SKU: FC-280P3K7T2E20H2BXCXXXSXXXXA0
Special Price
£872.10
£726.75
Regular Price
£1,162.80
This product replaces these items:
- 131Z9208 Danfoss VLT2840 4kW Variable Speed Drive
- 131Z9209 Danfoss VLT2840 4kW Variable Speed Drive
- 134H2379 Danfoss VLT2840 4kW Variable Speed Drive
- 134H5302 Danfoss VLT2840 4kW Variable Speed Drive
- 134H6615 Danfoss VLT2840 4kW Variable Speed Drive
- 178B6846 Danfoss VLT2840 4kW Variable Speed Drive
- 178F0634 Danfoss VLT2840 4kW Variable Speed Drive
- 178F2548 Danfoss VLT2840 4kW Variable Speed Drive
- 178F5171 Danfoss VLT2840 4kW Variable Speed Drive
- 178F7875 Danfoss VLT2840 4kW Variable Speed Drive
- 195N0077 Danfoss VLT2840 4kW Variable Speed Drive
- 195N0078 Danfoss VLT2840 4kW Variable Speed Drive
- 195N0079 Danfoss VLT2840 4kW Variable Speed Drive
- 195N0080 Danfoss VLT2840 4kW Variable Speed Drive
Why Choose the 134U7966?
The Danfoss 134U7966 (model code FC-280P3K7T2E20H2BXCXXXSXXXXA0) is a Variable speed drive (frequency converter) intended for panel installation where accurate motor control, repeatable commissioning, and reliable like-for-like replacement are required.
Configured with Current: 15.2, Enclosure: IP20 / Chassis, EMC/RFI: EMC Cat C3 (200/400V) to support correct selection and like-for-like replacements.
Key Benefits
- Variable speed drive (frequency converter) for correct application matching
- Configured with Current: 15.2, Enclosure: IP20 / Chassis, EMC/RFI: EMC Cat C3 (200/400V).
- Suitable for panel installations where reliable commissioning is required.
- SKU and model code shown for procurement and like for like replacements.
Technical Specifications
- Series: 280
- Enclosure: IP20 / Chassis
- RFI Filter: EMC Cat C3 (200/400V)
- Display: No display
- Height [mm]: 272.5
- Width w/ no C options [mm]: 115.0
- Depth [mm]: 168.0
- Net weight: 4.65 Kilogram
- EAN: 5710108040178
- Adaptation A: No Adaption
- Adaptation B: No Adaption
- Brake & Stop: Brake chopper
- Coating: Coated PCB
- Continuous Current (HO) [A]: 15.2
- Control Card: Integrated Profibus DP
- DrivePro category: Exchange Unit
- Frame Size: K3
- Gross weight: 5.2 Kilogram
- Intermittent Current (HO) [A]: 24.3
- Mains Option: No mains options
- Modelcode01: FC-280P3K7T2E20H2BXC
- Modelcode02: XXXSXXXXA0
- Power 160% (HO) [KW]: 3.7
- Power Loss HO [W]: 147.5
- Power Size: 3.7 kW / 5.0 HP
- Product Group: VLT® Midi Drive FC-
- Software Language Pack: Standard language pack
- Special Version: Latest release
- Typecode Part 1: FC-280P3K7T2E20H2BXC
- Typecode Part 2: XXXSXXXXA0
- Voltage: Three phase 200-240 VAC
Frequently Asked Questions
What enclosure class is it?
It is listed as IP20 / Chassis and is intended for installation in a suitable cabinet/enclosure as required.
Does it include an EMC/RFI filter?
The configuration is shown as EMC Cat C3 (200/400V). Choose a filtered variant or external filtering if your site requires it.
Where is 134U7966 typically installed?
In control panels or cabinets. Follow Danfoss installation guidance for clearances, earthing, and protective devices.
What does IP20 mean for 134U7966?
IP20 indicates protection against finger contact and solid objects over 12.5 mm. Install in a suitable enclosure to meet your site requirements.
Can 134U7966 be used for pump and fan applications?
Yes, when correctly sized and commissioned, frequency converters are commonly used to control pumps and fans for smoother starts and improved process control.
What should I check before ordering a like for like replacement for 134U7966?
Confirm supply voltage, power rating, current rating, enclosure class, and required EMC filtering or communications options match the existing installation.
| Manufacturer Part Number | 134U7966 |
|---|---|
| Barcode | 5710108040178 |
| Height | 272.5mm |
| Width | 115mm |
| Depth | 168mm |
| Filter | EMC Cat C3 (200/400V) |
| Degree of protection (IP) | IP20 |
| VSD Range | Danfoss VLT FC-280 Mididrive |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-280P3K7T2E20H2BXCXXXSXXXXA0 |
