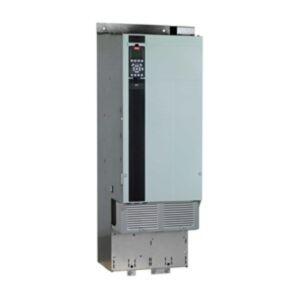

134F8268 Danfoss VLT Automation Drive FC 300 160 KW / 250 HP, 380 - 500 VAC, IP20
MPN: 134F8268
Alt. SKU: FC-302N160T5E20H4XGCXXXSXXXXA0BXCXXXXDX
Special Price
£18,306.90
£15,255.75
Regular Price
£24,409.20
Why Choose the Danfoss 134F8268 VLT AutomationDrive FC-302?
The Danfoss 134F8268 is a powerful and highly reliable VLT® AutomationDrive FC-302 variable frequency drive (VFD) designed for advanced industrial motor control and demanding automation applications. Engineered for precise speed and torque regulation of three-phase AC motors, this drive delivers dependable operation, intelligent process control and excellent energy efficiency across industrial environments.
As part of the advanced Danfoss VLT AutomationDrive FC-302 series, the 134F8268 combines flexible automation integration with robust industrial reliability. Its advanced programmable functionality, integrated safety features and modular communication capabilities make it ideal for OEM machinery manufacturers, industrial engineers and process automation systems.
With a rated output power of 160 kW / 250 HP and a three-phase 380–500 V AC input supply, the Danfoss 134F8268 is suitable for conveyors, compressors, pumps, industrial fans and heavy-duty production machinery. Its IP20 chassis enclosure enables efficient installation inside industrial control cabinets and automation panels.
Key Advantages
- Advanced industrial variable frequency drive for demanding automation systems.
- 160 kW / 250 HP motor power rating suitable for heavy industrial applications.
- Three-phase 380–500 V AC input compatible with industrial power systems.
- Compact IP20 chassis enclosure for control cabinet integration.
- Advanced motor control improves process precision and energy efficiency.
- Flexible integration with PLCs and industrial communication systems.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 160 kW / 250 HP rated output power.
- 380–500 V AC three-phase supply.
- IP20 / chassis protection rating.
- Integrated graphical local control panel.
- PROFIBUS DP MCA 101 communication option.
- Automatic Energy Optimisation (AEO) functionality.
- Integrated Safe Torque Off (STO) functionality.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: 134F8268
- Catalogue number: FC-302N160T5E20H4XGCXXXSXXXXA0BXCXXXXDX
- Product type: AC variable frequency drive
- Rated output power: 160 kW / 250 HP
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP20 / Chassis
- RFI filter: Class A1 (C2)
- Communication: PROFIBUS DP MCA 101
- Brake chopper: No brake chopper
- Control panel: Graphical local control panel
- PCB coating: Coated PCB
- Frame size: D4H
- Mounting type: Panel / cabinet mounting
- Cooling method: Forced air cooling
Advanced Industrial Motor Control
The Danfoss VLT® AutomationDrive FC-302 range is engineered to optimise industrial motor performance through intelligent variable frequency control. By regulating output voltage and frequency, the drive improves operational consistency, reduces energy consumption and minimises wear on connected motors and mechanical systems.
Its advanced automation platform enables seamless integration into industrial production systems, helping engineers and OEM manufacturers create reliable and efficient control solutions for industrial machinery and demanding automation environments.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and industrial fan systems.
- Heavy manufacturing and production machinery.
- Industrial processing and automation systems.
- Water and wastewater treatment systems.
- OEM machinery and process control installations.
Frequently Asked Questions
What is the Danfoss 134F8268 used for?
This drive is designed for controlling the speed and torque of industrial three-phase AC motors in automation and industrial process control applications.
What motor power can this drive support?
The Danfoss 134F8268 supports motors up to approximately 160 kW / 250 HP.
What input voltage does this drive require?
The drive operates from a three-phase 380–500 V AC power supply.
Is this drive suitable for control cabinet installation?
Yes, the drive features a compact IP20 chassis design intended for installation inside industrial control panels and automation cabinets.
What communication protocol is included?
The drive includes PROFIBUS DP MCA 101 communication capability for industrial automation integration.
Trusted Industrial Automation Technology
Danfoss VLT® AutomationDrive FC-302 drives are trusted worldwide for delivering reliable motor control, advanced automation integration and energy-efficient industrial performance across demanding industrial applications.
| Manufacturer Part Number | 134F8268 |
|---|---|
| Barcode | 5710107485475 |
| Height | 1122mm |
| Width | 350mm |
| Depth | 375mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 160kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302N160T5E20H4XGCXXXSXXXXA0BXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
