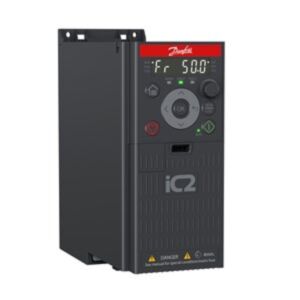

132L6115 Danfoss IC2 Micro Drive 2.2 KW / 3 HP 200-240 VAC IP20
MPN: 132L6115
Alt. SKU: IC2-30FA1N02-09A6E20F0-000060918
Special Price
£404.88
£337.40
Regular Price
£578.40
Why Choose the 132L6115?
The Danfoss 132L6115 (model code IC2-30FA1N02-09A6E20F0-000060918) is a Industrial automation component intended for panel installation where accurate motor control, repeatable commissioning, and reliable like-for-like replacement are required.
Configured with Power: 2.2 kW/3 HP, Current: 9.6 A, Supply: 200-240 V AC to support correct selection and like-for-like replacements.
Key Benefits
- Industrial automation component for correct application matching
- Configured with Power: 2.2 kW/3 HP, Current: 9.6 A, Supply: 200-240 V AC.
- Suitable for panel installations where reliable commissioning is required.
- SKU and model code shown for procurement and like for like replacements.
Technical Specifications
- Product type: Single-phase
- Power Rating: 2.2 kW/3 HP
- Mains Voltage: 200-240 V AC
- Net weight: 1.6 Kilogram
- EAN: 5714853456581
- Current Rating: 9.6 A
- Customization file package ID: No customization
- DrivePro category: Exchange Unit
- EMC Category: C1 category
- Frame Designation: MA02a
- Gross weight: 2.3 Kilogram
- Integrated brake chopper: No integrated brake chopper
- Modelcode01: IC2-30FA1N02-09A6E20F0
- Modelcode02: +ACXX
- Product category: Frequency converter air cooled
- Product Group: iC2-30
- Product series: iC2-Micro
- Product software ID: Latest released version
- Protection Rating: IP20/Open type
- Salescode part 1: IC2-30FA1N02-09A6E20F0
- Salescode part 2: +ACXX
- Typecode Part 1: IC2-30FA1N02-09A6E20F0
- Typecode Part 2: -000060918
Frequently Asked Questions
What supply does Danfoss 132L6115 require?
It is specified for 200-240 V AC. Match this to your incoming mains.
What is the rated power for 132L6115?
The listed power rating is 2.2 kW/3 HP. Confirm sizing against your motor and duty cycle.
Where is 132L6115 typically installed?
In control panels or cabinets. Follow Danfoss installation guidance for clearances, earthing, and protective devices.
What does IP20 mean for 132L6115?
IP20 indicates protection against finger contact and solid objects over 12.5 mm. Install in a suitable enclosure to meet your site requirements.
Can 132L6115 be used for pump and fan applications?
Yes, when correctly sized and commissioned, frequency converters are commonly used to control pumps and fans for smoother starts and improved process control.
What should I check before ordering a like for like replacement for 132L6115?
Confirm supply voltage, power rating, current rating, enclosure class, and required EMC filtering or communications options match the existing installation.
| Manufacturer Part Number | 132L6115 |
|---|---|
| Barcode | 5714853456581 |
| Filter | Filter Included |
| Degree of protection (IP) | IP20 |
| KW Rating | 2.2kW |
| Output Phases | Single Phase |
| VSD Range | Danfoss IC2 Microdrive |
| Manufacturer | Danfoss |
| Alternative Product SKU | IC2-30FA1N02-09A6E20F0-000060918 |
