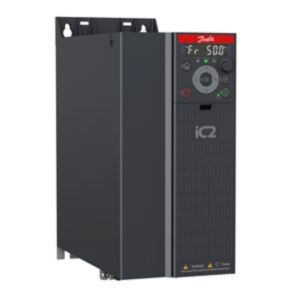

132F0058 Danfoss VLT Micro Drive FC-51 11KW/15 HP 380-480VAC IP20, No Display - to be phased out

Why Choose the Danfoss 132F0058 VLT Micro Drive FC-51?

The Danfoss 132F0058 is a compact and high-performance AC variable frequency drive (VFD) designed for reliable speed control of three-phase motors in industrial machinery, HVAC equipment and automation systems. As part of the Danfoss VLT Micro Drive FC-51 series, it combines strong motor control performance with a space-saving design for efficient installation in control panels and machine cabinets.

This drive is engineered for applications requiring dependable operation, simple commissioning and flexible control. The VLT Micro Drive FC-51 range is known for robust protection features, high efficiency and intuitive parameter setup, helping machine builders, panel manufacturers and maintenance engineers achieve reliable motor control with reduced installation effort.

With a rated output power of 11 kW / 15 HP, a 23 A output current and a three-phase 380–480 V AC supply, the Danfoss 132F0058 is suitable for conveyors, pumps, fans, compressors and process machinery. Its IP20 chassis format, RFI Class A1/B filtering and integrated brake chopper make it a practical choice for demanding industrial motor control applications.

Key Advantages

• Compact variable frequency drive for three-phase motor control.
• 11 kW / 15 HP motor power rating for industrial machinery applications.
• Three-phase 380–480 V AC input compatible with standard industrial supplies.
• 23 A rated output current for dependable motor performance.
• Integrated brake chopper for dynamic braking applications.
• Built-in RFI Class A1/B filter for improved electromagnetic compatibility.
• Compact IP20 chassis design for panel and cabinet installation.

Key Features

• Danfoss VLT Micro Drive FC-51 series.
• 11 kW / 15 HP rated output power.
• 23 A rated output current.
• Three-phase 380–480 V AC input supply.
• RFI Class A1/B filtering.
• Integrated brake chopper.
• RS485 communication with FC Protocol and Modbus RTU support.
• Five programmable digital inputs with PNP/NPN selection.
• Earth fault, temperature and short-circuit protection.
• High-efficiency design suitable for industrial and HVAC applications.

Technical Specifications

• Manufacturer: Danfoss
• Series: VLT Micro Drive FC-51
• Model: FC-051P11KT4E20H3BXCXXXSXXX
• Part number: 132F0058
• Product type: AC variable frequency drive
• Rated output power: 11 kW / 15 HP
• Rated output current: 23 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output phases: 3-phase
• Supply frequency: 50 / 60 Hz
• Protection rating: IP20 / chassis
• Frame size: M4
• RFI filter: Class A1/B (C1)
• Braking: Integrated brake chopper
• Communication: RS485, FC Protocol, Modbus RTU
• Dimensions (H × W × D): approx. 292 × 125 × 241 mm
• Weight: approx. 6 kg

Reliable Motor Control for Industrial and HVAC Systems

Variable frequency drives such as the Danfoss VLT Micro Drive FC-51 regulate motor speed by adjusting output voltage and frequency. This improves process control, reduces mechanical stress and helps lower energy usage in applications where motor speed does not need to remain fixed.

The 132F0058 is designed for dependable motor control in compact installations. With integrated braking support, built-in EMC filtering and communication options, it is suitable for both new installations and replacement drive applications across machinery, building services and industrial automation systems.

Typical Applications

• Industrial conveyors and material handling systems.
• Pumps, fans and HVAC equipment.
• Compressors and ventilation systems.
• Mixers, agitators and processing machinery.
• Packaging and production equipment.
• Control panels and OEM machinery installations.

Trusted by Industrial and HVAC Engineers

Danfoss VLT Micro Drive FC-51 inverters are trusted by panel builders, machine manufacturers and maintenance engineers for compact motor control, reliable performance and efficient operation in industrial and building service applications.
