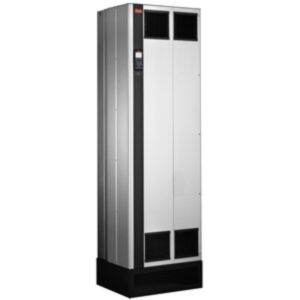

131Z9503 Danfoss VLT Automation Drive FC 300 400 KW / 550 HP, 380 - 500 VAC, IP54
MPN: 131Z9503
Alt. SKU: FC-302P400T5E5MH2XGC7XXSXXXXAXBKCXXXXDX
Special Price
£53,122.50
£44,268.75
Regular Price
£70,830.00
Why Choose the Danfoss 131Z9503 VLT AutomationDrive FC 300?
The Danfoss 131Z9503 is a high-power AC variable frequency drive (VFD) from the trusted Danfoss VLT AutomationDrive FC 300 series, designed for precise motor speed and torque control in demanding industrial environments. Built for large motor applications, this drive supports efficient operation, reliable process control and robust performance across a wide range of automation systems.
As part of the Danfoss VLT AutomationDrive range, the 131Z9503 combines advanced motor control functionality with flexible industrial integration. It is engineered to help improve energy efficiency, reduce mechanical stress and provide dependable control for heavy-duty equipment used in manufacturing, utilities and process industries.
With a rated output power of 400 kW / 550 HP and a three-phase 380–500 V AC supply, the 131Z9503 is suitable for large industrial motors used in pumps, fans, compressors, conveyors and process machinery. Its IP54 / Type 12 enclosure provides enhanced protection for challenging installation environments.
Key Advantages
- High-power variable frequency drive for industrial motor control.
- 400 kW / 550 HP motor power rating for demanding applications.
- Three-phase 380–500 V AC input for industrial power systems.
- IP54 / Type 12 protection for robust environmental performance.
- Integrated filter included for improved EMC performance.
- Advanced control technology supports efficient and precise motor operation.
- Designed for continuous use in heavy-duty industrial automation systems.
Key Features
- Danfoss VLT AutomationDrive FC 300 series.
- 400 kW rated output power.
- 550 HP motor rating.
- Three-phase 380–500 V AC input supply.
- Three-phase output for AC motor control.
- IP54 / Type 12 enclosure protection.
- RFI Class A2 (C3) filtering.
- No brake chopper configuration.
- Industrial automation and PLC integration capability.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT AutomationDrive FC 300
- Model: 131Z9503
- Alternative SKU: FC-302P400T5E5MH2XGC7XXSXXXXAXBKCXXXXDX
- Product type: AC variable frequency drive
- Rated output power: 400 kW
- Horsepower: 550 HP
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Output phases: Three-phase
- Protection rating: IP54 / Type 12
- Filter: Filter included
- RFI class: Class A2 (C3)
- Brake chopper: No brake chopper
- Mounting type: Industrial enclosure mounting
- Barcode: 5710107392117
Heavy-Duty Motor Control for Industrial Automation
Variable frequency drives such as the Danfoss 131Z9503 regulate motor speed by adjusting output voltage and frequency. This allows large AC motors to run more efficiently while improving process accuracy, reducing inrush current and minimising mechanical wear on connected equipment.
The VLT AutomationDrive FC 300 platform is widely used in industrial automation where reliable motor control, flexible configuration and strong operating performance are essential. Its high-power design makes it suitable for demanding systems that require stable operation and precise control.
Typical Applications
- Large industrial pumps and pumping stations.
- Heavy-duty conveyors and material handling systems.
- Compressors, blowers and ventilation equipment.
- Industrial fans and HVAC plant systems.
- Water and wastewater treatment facilities.
- Process manufacturing and production machinery.
- Heavy-duty OEM automation systems.
Frequently Asked Questions
What is the Danfoss 131Z9503 used for?
The Danfoss 131Z9503 is used to control the speed and torque of large three-phase AC motors in industrial automation, process control and heavy-duty machinery applications.
What motor power does this drive support?
This drive supports motors with a rated output power of approximately 400 kW / 550 HP.
What supply voltage does the drive require?
The 131Z9503 operates from a three-phase 380–500 V AC supply.
What protection rating does the Danfoss 131Z9503 have?
The drive has an IP54 / Type 12 enclosure, providing enhanced protection for industrial environments.
Does this drive include a brake chopper?
No, this configuration is supplied with no brake chopper.
Trusted by Industrial Automation Professionals
Danfoss VLT AutomationDrive FC 300 drives are trusted by engineers and system integrators worldwide for reliable high-power motor control, energy-efficient operation and long service life in demanding industrial applications.
| Manufacturer Part Number | 131Z9503 |
|---|---|
| Barcode | 5710107392117 |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP54 |
| KW Rating | 400kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P400T5E5MH2XGC7XXSXXXXAXBKCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
