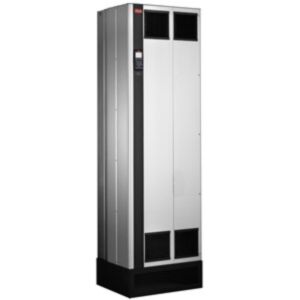

131Z9502 Danfoss VLT Automation Drive FC 300 355 KW / 500 HP, 380 - 500 VAC, IP54
MPN: 131Z9502
Alt. SKU: FC-302P355T5E5MH2XGC7XXSXXXXAXBKCXXXXDX
Special Price
£42,710.40
£35,592.00
Regular Price
£56,947.20
Why Choose the Danfoss 131Z9502 VLT AutomationDrive FC 300?
The Danfoss 131Z9502 is a high-performance AC variable frequency drive (VFD) from the renowned Danfoss VLT AutomationDrive FC 300 series, engineered for demanding industrial motor control applications. Designed to deliver exceptional reliability, precision and energy efficiency, this powerful drive is ideal for heavy-duty machinery, process automation and industrial production environments.
As part of the proven VLT AutomationDrive range, the 131Z9502 provides advanced motor control functionality, flexible communication options and robust protection features. It enables accurate speed and torque regulation while helping to reduce energy consumption and mechanical wear on connected equipment.
With a rated output power of 355 kW (500 HP) and a three-phase 380–500 V AC supply, the Danfoss 131Z9502 is suitable for large industrial motors used in conveyors, pumps, compressors, fans, material handling systems and process manufacturing applications. Its IP54 enclosure provides enhanced protection for installation in challenging industrial environments.
Key Advantages
- High-power variable frequency drive for industrial automation.
- 355 kW / 500 HP output rating for demanding motor applications.
- Three-phase 380–500 V AC input for industrial power systems.
- IP54 protection rating for enhanced environmental protection.
- Advanced motor control improves efficiency and process performance.
- Flexible integration with PLC and industrial automation systems.
- Designed for continuous operation in demanding environments.
Key Features
- Danfoss VLT AutomationDrive FC 300 series.
- 355 kW (500 HP) rated output power.
- 380–500 V AC three-phase input supply.
- IP54 enclosure protection.
- Integrated advanced motor control technology.
- Suitable for variable and constant torque applications.
- Industrial communication and automation compatibility.
- Optimised for energy-efficient motor operation.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT AutomationDrive FC 300
- Model: 131Z9502
- Alternative SKU: FC-302P355T5E5MH2XGC7XXSXXXXAXBKCXXXXDX
- Product type: AC variable frequency drive
- Rated output power: 355 kW
- Horsepower: 500 HP
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Output phases: Three-phase
- Protection rating: IP54
- Filter: Integrated filter included
- Mounting type: Industrial enclosure mounting
Advanced Motor Control for Industrial Applications
The Danfoss VLT AutomationDrive FC 300 series is designed to optimise motor performance across a wide range of industrial processes. By continuously regulating motor speed and torque, the drive improves process control, reduces energy consumption and extends equipment life.
Its advanced control platform supports demanding applications requiring high levels of precision and reliability. The drive is widely used in manufacturing, water treatment, material handling and process industries where consistent motor performance is essential.
Typical Applications
- Industrial conveyors and material handling systems.
- Large pumps and pumping stations.
- Compressors and blower systems.
- Industrial fans and ventilation systems.
- Processing and manufacturing equipment.
- Water and wastewater treatment plants.
- Heavy-duty OEM machinery and automation systems.
Frequently Asked Questions
What is the Danfoss 131Z9502 used for?
The Danfoss 131Z9502 is used to control the speed and torque of large three-phase AC motors in industrial automation and process control applications.
What motor size can this drive support?
This drive is rated for motors up to 355 kW (500 HP).
What supply voltage does the drive require?
The 131Z9502 operates from a three-phase 380–500 V AC supply.
What protection rating does this drive have?
The drive features an IP54 enclosure, providing protection against dust ingress and water splashes.
Which industries commonly use this drive?
It is commonly used in manufacturing, water treatment, material handling, HVAC, pumping and industrial process applications.
Trusted by Industrial Automation Professionals
Danfoss VLT AutomationDrive solutions are trusted worldwide for delivering reliable motor control, energy efficiency and long-term performance in demanding industrial environments.
| Manufacturer Part Number | 131Z9502 |
|---|---|
| Barcode | 5710107392100 |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP54 |
| KW Rating | 355kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P355T5E5MH2XGC7XXSXXXXAXBKCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
