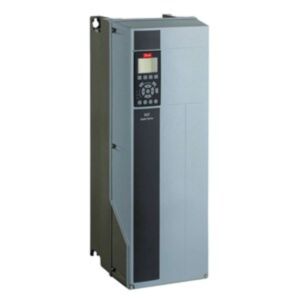

131X2236 Danfoss VLT Automation Drive FC 300 18.5 KW / 25 HP, 380 - 500 VAC, IP55
MPN: 131X2236
Alt. SKU: FC-302P18KT5E55H2XGXXOXSXXXXAXBXCXXXXDX
Special Price
£3,646.80
£3,039.00
Regular Price
£4,862.40
Why Choose the Danfoss 131X2236 VLT Automation Drive FC 302?
The Danfoss 131X2236 is a reliable and high-performance AC variable frequency drive (VFD) from the Danfoss VLT AutomationDrive FC 302 series, designed for accurate motor speed control, efficient operation and dependable performance in industrial automation environments. It is suitable for applications where precise control, repeatable commissioning and robust motor management are required.
As part of the advanced Danfoss FC 302 platform, this drive offers flexible functionality for demanding machinery and process applications. The VLT AutomationDrive range is widely used by engineers and system integrators who require efficient motor control, industrial communication compatibility and long-term reliability.
With a rated output power of 18.5 kW (25 HP) and a three-phase 380–500 V AC supply, the 131X2236 is well suited to medium-sized industrial motors used in conveyors, pumps, fans, compressors and production machinery. Its IP55 / NEMA 12 enclosure provides enhanced protection for installation in demanding industrial environments.
Key Advantages
- Reliable variable frequency drive for industrial automation applications.
- 18.5 kW / 25 HP motor power rating for medium-duty machinery.
- Three-phase 380–500 V AC input compatible with industrial power supplies.
- IP55 / NEMA 12 enclosure for protected installation environments.
- Advanced motor control for accurate speed and torque regulation.
- Integrated RFI filtering for improved EMC performance.
- Graphical local control panel for straightforward operation and commissioning.
- Designed for reliable like-for-like replacement and industrial system integration.
Key Features
- Danfoss VLT AutomationDrive FC 302 series.
- 18.5 kW rated output power.
- 25 HP horsepower rating.
- Three-phase 380–500 V AC input supply.
- IP55 / NEMA 12 enclosure protection.
- RFI Class A2 / C3 filtering.
- No brake chopper configuration.
- Graphical local control panel included.
- Unpainted PCB configuration.
- Estimated chassis size B2.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT AutomationDrive FC 302
- Model: 131X2236
- Model code: FC-302P18KT5E55H2XGXXOXSXXXXAXBXCXXXXDX
- Product type: AC variable frequency drive
- Rated output power: 18.5 kW
- Horsepower rating: 25 HP
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Output phases: Three phase
- Frequency: 50 / 60 Hz
- Protection rating: IP55 / NEMA 12
- RFI filter: Class A2 / C3
- Brake chopper: Not included
- Control panel: Graphical local control panel
- Chassis size: B2
Reliable Motor Control for Industrial Automation
Variable frequency drives such as the Danfoss VLT AutomationDrive FC 302 regulate motor speed by adjusting output voltage and frequency. This allows machinery to run more efficiently while improving process accuracy, reducing mechanical stress and supporting smoother operation across changing load conditions.
The Danfoss 131X2236 is designed for industrial users who need dependable motor control with flexible integration into automation systems. Its protected enclosure, graphical interface and advanced drive platform make it suitable for demanding production, processing and machine control environments.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps and pressure control systems.
- Fans and ventilation equipment.
- Compressors and process machinery.
- Packaging and production lines.
- Manufacturing and processing equipment.
- Industrial automation panels and control systems.
- Like-for-like replacement in existing Danfoss drive installations.
Frequently Asked Questions
What is the Danfoss 131X2236 used for?
The Danfoss 131X2236 is used to control the speed and torque of three-phase AC motors in industrial automation, machinery and process control applications.
What motor power is supported by this drive?
This drive is rated for motors up to approximately 18.5 kW (25 HP).
What supply voltage does the drive require?
The 131X2236 operates from a three-phase 380–500 V AC supply.
What protection rating does the drive have?
The drive has an IP55 / NEMA 12 enclosure, making it suitable for protected industrial installations where additional environmental protection is required.
Does this drive include a brake chopper?
No, this configuration of the Danfoss 131X2236 is supplied without a brake chopper.
Trusted by Industrial Engineers Worldwide
Danfoss VLT AutomationDrive FC 302 drives are trusted by automation engineers, OEM machine builders and maintenance teams for reliable motor control, energy-efficient operation and robust industrial performance.
| Manufacturer Part Number | 131X2236 |
|---|---|
| Barcode | 5710107040421 |
| Height | 650mm |
| Width | 242mm |
| Depth | 260mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP55 |
| KW Rating | 18.5kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P18KT5E55H2XGXXOXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
