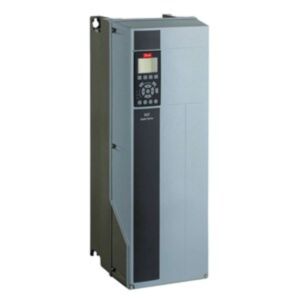

131L8666 Danfoss VLT Automation Drive FC 300 18.5 KW / 25 HP, 380 - 500 VAC, IP55
MPN: 131L8666
Alt. SKU: FC-302P18KT5E55H1XGXXOXSXXXXA0BXCXXXXDX
Special Price
£4,090.50
£3,408.75
Regular Price
£5,454.00
Why Choose the Danfoss 131L8666 VLT AutomationDrive?
The Danfoss 131L8666 is a robust and reliable VLT AutomationDrive FC 302 frequency converter designed for precise speed and torque control of three-phase motors in demanding industrial automation and process applications. As part of the proven Danfoss VLT AutomationDrive FC 300 series, it delivers flexible motor control for machinery, production systems and industrial process equipment.
This variable frequency drive is engineered to provide efficient motor operation, smooth acceleration and accurate process control. The FC 302 platform supports a wide range of operations, from standard motor speed regulation through to more dynamic machine and production line applications.
With a rated output power of 18.5 kW / 25 HP and a three-phase 380–500 V AC supply, the Danfoss 131L8666 is ideal for industrial motors used in conveyors, pumps, fans, compressors, mixers and production machinery. Its IP55 / Type 12 enclosure provides enhanced protection for installations requiring greater resistance to dust and moisture.
Key Advantages
- Reliable variable frequency drive for industrial automation.
- 18.5 kW / 25 HP motor power rating for demanding machinery applications.
- Three-phase 380–500 V AC input compatible with industrial power systems.
- Part of the trusted Danfoss VLT AutomationDrive FC 302 series.
- IP55 / Type 12 enclosure for improved environmental protection.
- PROFIBUS DP MCA 101 communication option for automation network integration.
Key Features
- Danfoss VLT AutomationDrive FC 302.
- 18.5 kW rated output power.
- 25 HP motor rating.
- Three-phase 380–500 V AC input supply.
- IP55 / Type 12 protection rating.
- RFI Class A1/B (C1) filter.
- No brake chopper.
- Graphical local control panel.
- PROFIBUS DP MCA 101 communication option.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT AutomationDrive FC 300
- Model: FC-302P18KT5E55H1XGXXOXSXXXXA0BXCXXXXDX
- Product type: AC variable frequency drive / frequency converter
- Rated output power: 18.5 kW
- Horsepower rating: 25 HP
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Output phases: 3-phase
- Protection rating: IP55 / Type 12
- RFI filter: Class A1/B (C1)
- Brake chopper: No brake chopper
- Control panel: Graphical local control panel
- Communication option: PROFIBUS DP MCA 101
- PCB coating: Not coated PCB
- Frame size: B2
- EAN: 5702427795457
- Net weight: approx. 28.74 kg
- Gross weight: approx. 32.3 kg
Reliable Motor Control for Industrial Applications
Variable frequency drives such as the Danfoss VLT AutomationDrive FC 302 regulate motor speed by adjusting output frequency and voltage. This enables smoother acceleration, improved process accuracy and reduced mechanical stress on motors, gearboxes, belts and driven equipment.
The Danfoss 131L8666 is designed for industrial automation systems where dependable performance, environmental protection and flexible communication are important. Its IP55 enclosure supports installation in more demanding environments, while the PROFIBUS DP option enables integration with established industrial automation networks.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, fans and ventilation equipment.
- Compressors and process machinery.
- Mixers, extruders and manufacturing equipment.
- Packaging and production lines.
- General industrial automation and motor speed control.
Frequently Asked Questions
What is the Danfoss 131L8666 used for?
The Danfoss 131L8666 is used to control the speed and torque of three-phase AC motors in industrial automation, machinery and process control applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of approximately 18.5 kW / 25 HP.
What supply voltage does the drive require?
The Danfoss 131L8666 operates from a three-phase 380–500 V AC supply.
What communication option is fitted to this model?
This model includes the PROFIBUS DP MCA 101 communication option for integration with industrial automation networks.
What protection rating does this drive have?
This model has an IP55 / Type 12 enclosure, offering improved protection for industrial environments where dust and moisture resistance are required.
Trusted by Industrial Automation Engineers Worldwide
Danfoss VLT AutomationDrive FC 302 frequency converters are widely used by engineers, OEMs and panel builders to deliver efficient motor control, flexible automation integration and dependable industrial performance.
| Manufacturer Part Number | 131L8666 |
|---|---|
| Barcode | 5702427795457 |
| Height | 650mm |
| Width | 242mm |
| Depth | 260mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP55 |
| KW Rating | 18.5kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P18KT5E55H1XGXXOXSXXXXA0BXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
