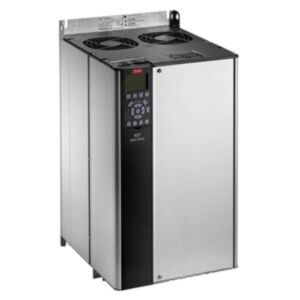

131L0164 Danfoss VLT Automation Drive FC 300 37 KW / 50 HP, 380 - 500 VAC, IP20
MPN: 131L0164
Alt. SKU: FC-302P37KT5E20H1BGXDXXSXXXXAXBXC4XXXD0
Special Price
£6,770.70
£5,642.25
Regular Price
£9,027.60
Why Choose the Danfoss 131L0164 VLT AutomationDrive FC 302?
The Danfoss 131L0164 is a high-performance and highly reliable AC variable frequency drive (VFD) from the advanced Danfoss VLT® AutomationDrive FC 302 series, engineered for precise motor speed and torque control in demanding industrial automation and process applications. Designed for OEMs, automation engineers and industrial manufacturers, this drive delivers dependable motor management, flexible integration and outstanding operational efficiency.
Part of the globally trusted VLT® AutomationDrive platform, the 131L0164 provides advanced motor control functionality while helping reduce energy consumption and improve process performance. Its modular architecture and configurable options allow seamless integration into industrial communication systems and modern automation networks.
With a rated output power of 37 kW and a three-phase 380–500 V AC input supply, the Danfoss 131L0164 is ideal for conveyors, compressors, pumps, fans, mixers and heavy-duty industrial machinery. Its compact IP20 chassis enclosure enables efficient installation inside industrial electrical cabinets and automation panels.
Key Advantages
- Advanced variable frequency drive for industrial automation systems.
- 37 kW motor power rating suitable for demanding industrial applications.
- Three-phase 380–500 V AC operation.
- Integrated brake chopper for enhanced braking control.
- Compact IP20 chassis design for cabinet integration.
- Integrated EMC filtering for improved electrical performance.
- Reliable continuous-duty operation in industrial environments.
Key Features
- Danfoss VLT® AutomationDrive FC 302 series.
- 37 kW / 50 HP rated motor power.
- Three-phase 380–500 V AC input voltage.
- IP20 / chassis enclosure.
- Integrated RFI Class A1/B (C1) EMC filter.
- Integrated brake chopper functionality.
- Graphical local control panel (LCP).
- MCB-107 24 V DC backup option.
- Flexible modular architecture with expansion capability.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC 302
- Model: 131L0164
- Alternative model code: FC-302P37KT5E20H1BGXDXXSXXXXAXBXC4XXXD0
- Product type: AC variable frequency drive
- Rated output power: 37 kW / 50 HP
- Continuous output current (HO): 73 A
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Enclosure rating: IP20 / chassis
- RFI filter: RFI Class A1/B (C1)
- Brake chopper: Integrated
- Control panel: Graphical local control panel
- Frame size: C3
- Mounting type: Cabinet / panel mounting
- Dimensions (H × W × D): approx. 550 × 308 × 333 mm
- Weight: approx. 37.74 kg net
- Frequency: 50 / 60 Hz
Reliable Motor Control for Industrial Automation
The Danfoss VLT® AutomationDrive FC 302 series is engineered to provide highly accurate and energy-efficient motor control across demanding industrial applications. By dynamically regulating output voltage and frequency, the drive improves operational precision, reduces energy consumption and minimises mechanical wear on motors and connected equipment.
Its scalable modular platform and industrial communication compatibility make the 131L0164 ideal for manufacturers and automation engineers seeking dependable motor control, flexible system integration and long-term operational reliability.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, fans and HVAC equipment.
- Compressors and processing machinery.
- Packaging and production systems.
- Industrial mixers and process equipment.
- OEM machinery and factory automation systems.
Frequently Asked Questions
What is the Danfoss 131L0164 used for?
The Danfoss 131L0164 is used for controlling the speed and torque of AC motors in industrial automation and process control applications.
What motor power does this drive support?
This drive supports motors up to 37 kW / 50 HP.
What input voltage does the drive require?
The drive operates from a three-phase 380–500 V AC power supply.
Does this drive include a brake chopper?
Yes, the Danfoss 131L0164 includes an integrated brake chopper for enhanced braking control and dynamic stopping applications.
Where is this drive typically installed?
The drive is designed for installation inside industrial electrical cabinets and automation control panels.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive products are trusted worldwide by automation engineers, OEM manufacturers and industrial system integrators for reliable motor control, flexible integration and energy-efficient industrial performance.
| Manufacturer Part Number | 131L0164 |
|---|---|
| Barcode | 5702427709133 |
| Height | 550mm |
| Width | 308mm |
| Depth | 333mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 37kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P37KT5E20H1BGXDXXSXXXXAXBXC4XXXD0 |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
