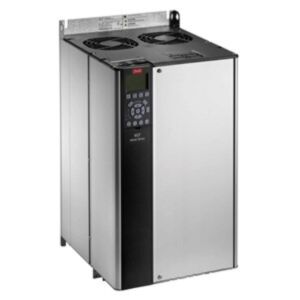

131H5571 Danfoss VLT Automation Drive FC 300 45 KW / 60 HP, 380 - 500 VAC, IP20
MPN: 131H5571
Alt. SKU: FC-302P45KT5E20H1BGXXXXSXXXXA0BXCXXXXDX
Special Price
£7,752.60
£6,460.50
Regular Price
£10,336.80
Why Choose the Danfoss 131H5571 VLT® AutomationDrive FC 302?
The Danfoss 131H5571 is a high-performance AC variable frequency drive (VFD) developed for advanced industrial automation and precision motor control applications. As part of the industry-leading Danfoss VLT® AutomationDrive FC 302 series, this drive delivers reliable speed regulation, efficient torque control and seamless integration into demanding industrial systems.
Designed for continuous industrial operation, the FC 302 range combines intelligent motor management with advanced automation functionality and flexible communication capabilities. The Danfoss 131H5571 is ideal for conveyors, pumps, compressors, fans and production machinery where energy efficiency, process consistency and dependable uptime are essential.
With a rated output power of 45 kW / 60 HP and a three-phase 380–500 V AC supply, this drive is designed for medium to heavy-duty industrial motor applications. Its durable IP20 chassis enclosure enables straightforward installation inside industrial electrical cabinets and automation control panels.
Key Advantages
- Advanced variable frequency drive for industrial automation systems.
- 45 kW / 60 HP motor power rating suitable for demanding industrial applications.
- Three-phase 380–500 V AC input compatible with industrial power systems.
- Integrated RFI Class A1/B filter for enhanced EMC performance.
- Integrated brake chopper for improved braking functionality.
- Graphical Local Control Panel (LCP) included for simplified setup and monitoring.
- Supports industrial communication and automation network integration.
- Reliable Danfoss VLT® technology engineered for continuous industrial operation.
Key Features
- Danfoss VLT® AutomationDrive FC 302 series.
- 45 kW / 60 HP rated output power.
- 90 A continuous output current.
- Three-phase 380–500 V AC supply input.
- Integrated RFI Class A1/B (C1) filter.
- Brake chopper included.
- Graphical Local Control Panel (LCP) fitted.
- PROFIBUS DP MCA 101 communication support.
- Designed for asynchronous and permanent magnet motors.
- Compact IP20 / chassis enclosure.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC 302
- Model: 131H5571
- Alternative model code: FC-302P45KT5E20H1BGXXXXSXXXXA0BXCXXXXDX
- Product type: AC variable frequency drive
- Rated output power (HO): 45 kW / 60 HP
- Rated output power (NO): 55 kW / 75 HP
- Continuous output current (HO): 90 A
- Continuous output current (NO): 106 A
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Output frequency: 0–590 Hz
- Frequency: 50 / 60 Hz
- Protection rating: IP20
- Mounting type: Cabinet / panel mounting
- Frame size: C3
- RFI filter: Class A1/B (C1)
- Brake chopper: Included
- Local control panel: Graphical Local Control Panel
- PCB coating: Not coated PCB
- Communication: PROFIBUS DP MCA 101
- Dimensions (H × W × D): approx. 550 × 308 × 333 mm
- Net weight: approx. 35 kg
Advanced Industrial Motor Control
The Danfoss VLT® AutomationDrive FC 302 series is engineered to provide precise motor speed and torque control across industrial automation systems. By accurately controlling motor voltage and frequency, the drive improves energy efficiency, reduces mechanical wear and enhances process consistency across industrial machinery.
Its modular architecture and communication flexibility allow seamless integration into industrial automation platforms and OEM equipment. The FC 302 series is trusted across manufacturing and process industries where uptime, reliability and efficient motor performance are essential.
Typical Applications
- Industrial conveyors and material handling systems.
- Manufacturing and production machinery.
- Pumps, compressors and industrial ventilation systems.
- Industrial fans and HVAC applications.
- Packaging and process automation systems.
- OEM automation machinery and industrial process equipment.
Frequently Asked Questions
What is the Danfoss 131H5571 used for?
The Danfoss 131H5571 is used for controlling the speed and torque of three-phase AC motors in industrial automation and process applications.
What motor power is supported by this drive?
This drive supports motors with a rated output power of approximately 45 kW / 60 HP in high overload applications.
What supply voltage does the drive require?
The 131H5571 operates from a three-phase 380–500 V AC supply.
Does the drive include a brake chopper and control panel?
Yes, this model includes an integrated brake chopper and a Graphical Local Control Panel (LCP) for enhanced control and simplified commissioning.
Where is the Danfoss 131H5571 typically installed?
The drive is designed for installation inside industrial electrical cabinets and automation control panels.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive frequency converters are trusted worldwide by industrial engineers and OEM machine builders for dependable motor control, flexible automation integration and reliable industrial performance.
| Manufacturer Part Number | 131H5571 |
|---|---|
| Barcode | 5702427559493 |
| Height | 550mm |
| Width | 308mm |
| Depth | 333mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 45kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P45KT5E20H1BGXXXXSXXXXA0BXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
