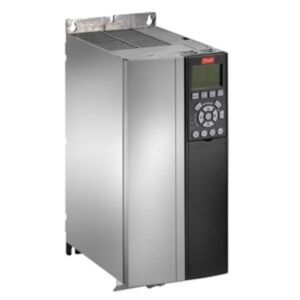

131F7145 Danfoss VLT Automation Drive FC 300 11 KW / 15 HP, 380 - 500 VAC, IP20
MPN: 131F7145
Alt. SKU: FC-302P11KT5E20H2XXXXXXSXXXXAXBXCXXXXDX
Special Price
£2,121.30
£1,767.75
Regular Price
£2,828.40
Why Choose the Danfoss 131F7145 VLT AutomationDrive FC-302?
The Danfoss 131F7145 is a robust AC variable frequency drive (VFD) from the VLT AutomationDrive FC-302 series, designed for precise motor speed control in industrial automation, machinery, pumps, fans and general purpose drive applications.
With a rated output power of 11 kW / 15 HP, a 24 A continuous current rating and a three-phase 380–500 V AC supply, the 131F7145 is suitable for medium-duty three-phase motor control systems. It features an IP20 chassis enclosure, RFI Class A2 / C3 filter, no brake chopper and no local control panel.
Key Features
- Danfoss VLT AutomationDrive FC-302 series.
- 11 kW / 15 HP rated output power.
- 24 A continuous output current.
- Three-phase 380–500 V AC input supply.
- IP20 / chassis enclosure format.
- Frame size B3.
- RFI Class A2 / C3 filter.
- No brake chopper fitted.
- No local control panel included.
- Model code: FC-302P11KT5E20H2XXXXXXSXXXXAXBXCXXXXDX.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT AutomationDrive FC-302
- Part number: 131F7145
- Model code: FC-302P11KT5E20H2XXXXXXSXXXXAXBXCXXXXDX
- Rated output power: 11 kW / 15 HP
- Continuous current: 24 A at 380–440 V AC / 21 A at 441–500 V AC
- Intermittent current: 38.4 A at 380–440 V AC / 33.6 A at 441–500 V AC
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Output phases: 3-phase
- Protection rating: IP20 / chassis
- Frame size: B3
- RFI filter: Class A2 / C3
- Brake chopper: Not included
- Local control panel: Not included
- PCB coating: Not coated
- Mains option: No mains option
- Application: Industrial automation and general purpose motor control
Typical Applications
- Industrial motor control systems.
- Machine automation and production equipment.
- Pumps and fan control panels.
- Conveyors and process machinery.
- General purpose variable speed drive applications.
Frequently Asked Questions
What is the Danfoss 131F7145 used for?
The Danfoss 131F7145 is used for variable speed control of three-phase AC motors in industrial automation, machinery, pump, fan and general purpose drive applications.
What motor power is supported by this drive?
This VLT AutomationDrive FC-302 is rated for motors up to 11 kW / 15 HP.
What supply voltage does the Danfoss 131F7145 require?
The drive operates from a three-phase 380–500 V AC power supply.
Does this drive include a brake chopper?
No, the Danfoss 131F7145 configuration does not include a brake chopper.
Does the drive include a local control panel?
No, this configuration is supplied without a local control panel.
| Manufacturer Part Number | 131F7145 |
|---|---|
| Barcode | 5702427470941 |
| Height | 399mm |
| Width | 165mm |
| Depth | 249mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 11kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P11KT5E20H2XXXXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
