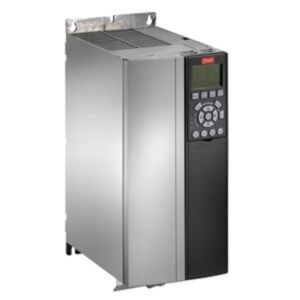

131F6631 Danfoss VLT FC-102 HVAC Drive 15 KW / 20 HP, 380 - 480 VAC, IP20
MPN: 131F6631
Alt. SKU: FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
Special Price
£1,723.68
£1,436.40
Regular Price
£2,872.80
Why Choose the Danfoss 131F6631 VLT HVAC Drive FC-102?
The Danfoss 131F6631 is a robust and efficient AC variable frequency drive (VFD) designed for reliable motor control in HVAC, building services and industrial ventilation applications. As part of the Danfoss VLT HVAC Drive FC-102 series, it is engineered for fans, pumps, compressors and heating, ventilation and air conditioning systems where energy efficiency and dependable performance are essential.
This drive provides dedicated HVAC functionality in an IP20 chassis format. The VLT HVAC Drive range is widely used in building automation systems because it helps optimise motor speed, reduce energy consumption and improve comfort control in ventilation, pumping and refrigeration applications.
With a rated output power of 15 kW / 20 HP, a 32 A continuous current rating and a three-phase 380–480 V AC supply, the 131F6631 is suitable for HVAC motors used in fans, pumps and air handling equipment. Its built-in RFI Class A1/B filter supports electromagnetic compatibility in suitable installations, while the graphical local control panel provides convenient drive setup and monitoring.
Key Advantages
- Dedicated VLT HVAC Drive for building services applications.
- 15 kW / 20 HP motor power rating suitable for HVAC fan and pump systems.
- Three-phase 380–480 V AC input compatible with industrial supplies.
- 32 A continuous current rating for dependable motor operation.
- Built-in RFI Class A1/B filter for improved electromagnetic compatibility.
- Supplied with graphical local control panel for easy commissioning.
- Robust IP20 chassis design for panel and cabinet installation.
Key Features
- Danfoss VLT HVAC Drive FC-102 series.
- 15 kW / 20 HP rated output power.
- 32 A continuous output current.
- Three-phase 380–480 V AC input supply.
- IP20 / chassis enclosure format.
- Built-in RFI Class A1/B / C1 filter.
- No brake chopper fitted.
- Graphical local control panel included.
- Frame size B3.
- Designed for HVAC fan, pump and compressor motor control.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT HVAC Drive FC-102
- Model: FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
- Part number: 131F6631
- Product type: AC variable frequency drive
- Rated output power: 15 kW / 20 HP
- Continuous current: 32 A at 380–440 V AC / 27 A at 441–480 V AC
- Intermittent current: 35.2 A at 380–440 V AC / 29.7 A at 441–480 V AC
- Input voltage: 380–480 V AC
- Input phases: 3-phase
- Output phases: 3-phase
- Output frequency: 0–1000 Hz
- Supply frequency: 50 / 60 Hz
- Protection rating: IP20 / chassis
- Frame size: B3
- RFI filter: Class A1/B / C1
- Brake chopper: Not included
- Local control panel: Graphical local control panel included
- Dimensions (H × W × D): approx. 399 × 165 × 249 mm
- Weight: approx. 10.89 kg
Efficient Motor Control for HVAC Systems
Variable frequency drives such as the Danfoss VLT HVAC Drive FC-102 regulate motor speed by adjusting output voltage and frequency. In HVAC systems, this allows fans, pumps and compressors to operate only at the speed required, helping reduce energy use and improve overall system performance.
The 131F6631 is designed for control panel installations in building services, plant rooms and industrial HVAC systems. Its HVAC-focused functionality makes it suitable for applications where reliable motor control, efficient operation and smooth speed regulation are important.
Typical Applications
- HVAC fans and air handling units.
- Building services pumps and circulation systems.
- Ventilation and extraction equipment.
- Heating and cooling plant room systems.
- Industrial fan and pump applications.
- Control panels and building automation installations.
Frequently Asked Questions
What is the Danfoss 131F6631 used for?
The Danfoss 131F6631 is used to control three-phase AC motors in HVAC, fan, pump, ventilation and building services applications.
What motor power is supported by this drive?
This VLT HVAC Drive FC-102 is rated for motors with an output power of approximately 15 kW / 20 HP.
What supply voltage does the Danfoss 131F6631 require?
The drive operates from a three-phase 380–480 V AC supply.
Does this drive include a brake chopper?
No, the Danfoss 131F6631 configuration does not include a brake chopper.
Does the drive include a local control panel?
Yes, this configuration includes a graphical local control panel for drive setup, monitoring and operation.
Trusted by HVAC and Building Services Engineers
Danfoss VLT HVAC Drive FC-102 inverters are trusted by building services engineers, panel builders, facilities teams and maintenance engineers for efficient motor control, reliable operation and long-term performance in HVAC applications.
| Manufacturer Part Number | 131F6631 |
|---|---|
| Barcode | 5702427465268 |
| Height | 399mm |
| Width | 165mm |
| Depth | 249mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 15kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT FC102 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
The VLT HVAC drive has built-in intelligence to give optimal process control to heating, ventilation and air conditioning (HVAC). It is simple to use and extremely cost-efficient, featuring a number of functions that are ideal for use with pumps, fans and compressors to save energy, meet environmental regulations and reduce costs in modern buildings.
The VLT HVAC drive has a compact, robust design and is ideally suited to locations where space is restricted. A selection of safety features, such as Safe Torque Off and Safe Maximum Speed, protect both applications and their operators.
Enclosures can be purchased separately, up to IP66, and an additional option available upon purchase is a unique coating to provide added protection for the circuit boards. Integrated DC chokes and RFI filters safeguard installations by minimizing harmonic distortion and electromagnetic.
Supply voltages and power range
3 x 200-240 V...1.1-45 kW
3 x 380-480 V...1.1 kW – 1 MW
3 x 525-600 V...1.1-90 kW
3 x 525-690 V...45 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-480 V...250-200kW
Features and benefits
- There’s no need for external cooling or oversizing as the maximum ambient temperature is 50°C without derating
- PLC capacity is often unnecessary thanks to the Smart Logic Controller
- A low initial investment and easy upgrades are possible thanks to the modular concept with a wide range of options
- The need for external control and conversion equipment is avoided due to integrated pump, fan and compressor functionality
- 5–15% energy is saved as a result of the Automatic Energy Optimization function
- Less gateway solutions are needed thanks to a wide range of HVAC protocols for building management system controller connectivity
Applications
Pumps, fans, compressors.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
Danfoss ecoSmart
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
For further information on this product please get in touch with our team or visit the Danfoss website.
