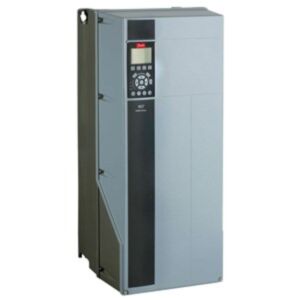

131B9832 Danfoss VLT Automation Drive FC 300 75 KW / 100 HP, 380 - 500 VAC, IP55
MPN: 131B9832
Alt. SKU: FC-302P75KT5E55H1XGXXXXSXXXXA0BXCXXXXDX
Special Price
£10,007.10
£8,339.25
Regular Price
£13,342.80
Why Choose the Danfoss 131B9832 VLT® AutomationDrive FC-302?
The Danfoss 131B9832 is a powerful and highly reliable AC variable frequency drive (VFD) from the advanced VLT® AutomationDrive FC-302 series, engineered for demanding industrial automation and precision motor control applications. Designed for accurate speed regulation, dependable torque performance and energy-efficient operation, this drive is ideal for heavy-duty industrial systems, process machinery and OEM automation equipment.
The FC-302 series is widely recognised for its intelligent automation capabilities, flexible communication integration and rugged industrial construction. The Danfoss 131B9832 combines advanced vector motor control with a durable IP55 / Type 12 enclosure, making it highly suitable for industrial environments exposed to dust and demanding operating conditions.
With a rated output power of 75 kW / 100 HP and a three-phase 380–500 V AC supply, this drive is ideal for conveyors, pumps, compressors, fans and demanding process automation systems. Its enclosed industrial design simplifies installation while reducing the need for additional protective cabinets in many applications.
Key Advantages
- Industrial-grade variable frequency drive for automation systems.
- 75 kW / 100 HP motor power rating for demanding industrial applications.
- Three-phase 380–500 V AC input suitable for industrial electrical systems.
- IP55 / Type 12 enclosure designed for harsh industrial environments.
- Advanced vector motor control improves operational precision and energy efficiency.
- Reliable Danfoss engineering designed for continuous industrial operation.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 75 kW / 100 HP rated output power.
- 145 A nominal output current.
- Three-phase 380–500 V AC input supply.
- IP55 / Type 12 protected enclosure.
- Integrated RFI Class A1/B (C1) filter.
- Graphical local control panel for simplified setup and commissioning.
- Advanced vector motor control technology with programmable logic functionality.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: FC-302P75KT5E55H1XGXXXXSXXXXA0BXCXXXXDX
- SKU: 131B9832
- Product type: AC variable frequency drive
- Rated output power: 75 kW / 100 HP
- Rated output current: 145 A
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP55 / Type 12
- Mounting type: Wall / cabinet mounting
- Frame size: D1h
- Cooling method: Forced air cooling
- RFI filter: Class A1/B (C1)
- Control panel: Graphical local control panel included
- PCB coating: Standard non-coated PCB
- Net weight: approx. 60.2 kg
Advanced Motor Control for Industrial Applications
Variable frequency drives such as the Danfoss FC-302 regulate motor speed and torque by dynamically adjusting output voltage and frequency according to process demand. This improves operational efficiency, reduces mechanical stress and lowers overall energy consumption across industrial automation systems.
The VLT® AutomationDrive range is designed for demanding industrial environments requiring reliable motor control, advanced automation integration and flexible communication compatibility. Its modular design and programmable functionality make it suitable for a broad range of production and process automation systems.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and fan control systems.
- Manufacturing and process machinery.
- Packaging and automation equipment.
- HVAC and ventilation systems.
- OEM machinery and industrial automation installations.
Frequently Asked Questions
What is the Danfoss 131B9832 used for?
This drive controls the speed and torque of three-phase AC motors used in industrial automation and heavy-duty machinery applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of 75 kW / 100 HP.
What supply voltage does the drive require?
The Danfoss 131B9832 operates from a three-phase 380–500 V AC supply.
What enclosure protection does the drive provide?
This model features an IP55 / Type 12 enclosure suitable for demanding industrial environments requiring enhanced protection against dust and debris.
Does the drive include a local control panel?
Yes, the Danfoss 131B9832 includes a graphical local control panel for simplified setup and commissioning.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive FC-302 drives are trusted worldwide for dependable motor control, advanced automation integration and energy-efficient industrial performance.
| Manufacturer Part Number | 131B9832 |
|---|---|
| Barcode | 5702427389397 |
| Height | 780mm |
| Width | 370mm |
| Depth | 332mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP55 |
| KW Rating | 75kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P75KT5E55H1XGXXXXSXXXXA0BXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
