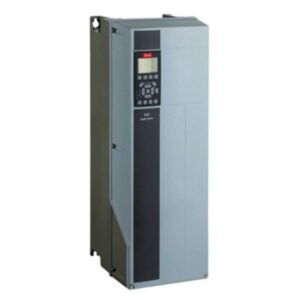

131B9178 Danfoss VLT Automation Drive FC 300 18.5 KW / 25 HP, 380 - 500 VAC, IP66
MPN: 131B9178
Alt. SKU: FC-302P18KT5E66H1XGCXXXSXXXXAXBXCXXXXD0
Special Price
£4,189.50
£3,491.25
Regular Price
£5,586.00
Why Choose the Danfoss 131B9178 VLT® AutomationDrive FC-302?
The Danfoss 131B9178 is a rugged and high-performance AC variable frequency drive (VFD) from the advanced VLT® AutomationDrive FC-302 series, engineered for demanding industrial automation and precision motor control applications. Designed for accurate speed regulation, dependable torque control and energy-efficient operation, this drive is ideal for industrial environments requiring reliable long-term performance.
The FC-302 series is widely recognised for its advanced automation capabilities, flexible communication integration and durable industrial construction. The Danfoss 131B9178 combines intelligent vector motor control with a robust IP66 / NEMA 4X enclosure, making it highly suitable for harsh industrial environments exposed to dust, moisture and washdown conditions.
With a rated output power of 18.5 kW / 25 HP and a three-phase 380–500 V AC supply, this drive is suitable for conveyors, pumps, compressors, fans and demanding industrial process machinery. Its enclosed industrial design allows installation without requiring a separate protective cabinet in many applications.
Key Advantages
- Industrial-grade variable frequency drive for automation systems.
- 18.5 kW / 25 HP motor power rating for demanding industrial applications.
- Three-phase 380–500 V AC input suitable for industrial electrical systems.
- IP66 / NEMA 4X enclosure designed for harsh industrial environments.
- Advanced motor control improves operational precision and energy efficiency.
- Reliable Danfoss engineering designed for continuous industrial operation.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 18.5 kW / 25 HP rated output power.
- 37 A nominal output current.
- Three-phase 380–500 V AC input supply.
- IP66 / NEMA 4X protected enclosure.
- Integrated RFI Class A1/B (C1) filter.
- Graphical local control panel for simplified setup and operation.
- Advanced vector motor control technology with programmable logic functionality.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: FC-302P18KT5E66H1XGCXXXSXXXXAXBXCXXXXD0
- SKU: 131B9178
- Product type: AC variable frequency drive
- Rated output power: 18.5 kW / 25 HP
- Rated output current: 37 A
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP66 / NEMA 4X
- Mounting type: Wall / cabinet mounting
- Frame size: B2
- Cooling method: Forced air cooling
- RFI filter: Class A1/B (C1)
- Control panel: Graphical local control panel included
- PCB coating: Coated PCB for enhanced environmental protection
- Backup option: MCB-107 24V DC backup
Advanced Motor Control for Industrial Applications
Variable frequency drives such as the Danfoss FC-302 regulate motor speed and torque by dynamically adjusting output voltage and frequency according to process requirements. This improves operational efficiency, reduces mechanical stress and lowers overall energy consumption across industrial automation systems.
The VLT® AutomationDrive range is developed for demanding industrial environments requiring reliable motor control, flexible communication integration and advanced automation functionality. Its compatibility with PLC systems and industrial networks makes it suitable for a broad range of production and process automation applications.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and fan control systems.
- Manufacturing and processing machinery.
- Packaging and automation equipment.
- HVAC and ventilation systems.
- OEM machinery and industrial automation installations.
Frequently Asked Questions
What is the Danfoss 131B9178 used for?
This drive controls the speed and torque of three-phase AC motors used in industrial automation and heavy-duty machinery applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of 18.5 kW / 25 HP.
What supply voltage does the drive require?
The Danfoss 131B9178 operates from a three-phase 380–500 V AC supply.
What enclosure protection does the drive provide?
This model features an IP66 / NEMA 4X enclosure suitable for demanding industrial environments requiring enhanced protection against dust and moisture.
Does the drive include a local control panel?
Yes, the Danfoss 131B9178 includes a graphical local control panel for simplified setup and operation.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive FC-302 drives are trusted worldwide for dependable motor control, advanced automation integration and energy-efficient industrial performance.
| Manufacturer Part Number | 131B9178 |
|---|---|
| Barcode | 5710107183401 |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP66 |
| KW Rating | 18.5kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P18KT5E66H1XGCXXXSXXXXAXBXCXXXXD0 |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
