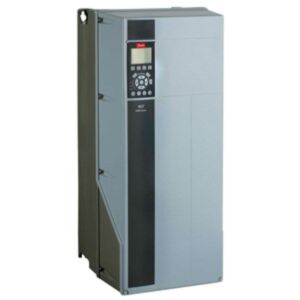

131B8644 Danfoss VLT Automation Drive FC 300 55 KW / 75 HP, 380 - 500 VAC, IP21
MPN: 131B8644
Alt. SKU: FC-302P55KT5E21H1XGXXXXSXXXXA0BXCXXXXDX
Special Price
£8,946.90
£7,455.75
Regular Price
£11,929.20
Why Choose the Danfoss 131B8644 VLT® AutomationDrive FC-302?
The Danfoss 131B8644 is a heavy-duty AC variable frequency drive (VFD) from the highly advanced VLT® AutomationDrive FC-302 series, engineered for demanding industrial motor control and automation applications. Designed to deliver accurate speed regulation, efficient torque control and dependable long-term performance, this drive is ideal for industrial environments requiring reliable operation and energy efficiency.
The FC-302 series is recognised worldwide for its intelligent automation capabilities, robust communication functionality and flexible integration into industrial control systems. The Danfoss 131B8644 combines advanced motor control technology with industrial-grade durability to help improve machine productivity, reduce downtime and optimise energy consumption.
With a rated output power of 132 kW / 180 HP and a three-phase 380–500 V AC supply, this drive is ideal for large pumps, compressors, conveyors, fans and demanding process automation systems. Its cabinet-mounted industrial design allows seamless installation within large-scale production and automation environments.
Key Advantages
- Heavy-duty variable frequency drive for industrial automation systems.
- 132 kW / 180 HP motor power rating for demanding industrial loads.
- Three-phase 380–500 V AC input suitable for industrial electrical networks.
- Advanced motor control improves process precision and energy efficiency.
- Integrated communication functionality for automation integration.
- Reliable Danfoss engineering designed for continuous industrial operation.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 132 kW / 180 HP rated output power.
- 250 A nominal output current.
- Three-phase 380–500 V AC input supply.
- Integrated RFI filter for EMC compliance.
- Advanced vector motor control technology.
- Built-in programmable logic and communication interfaces.
- Industrial cabinet-mounted construction.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: FC-302P132KT5E20H1XGXXXXSXXXXAXBXCXXXXDX
- SKU: 131B8644
- Product type: AC variable frequency drive
- Rated output power: 132 kW / 180 HP
- Rated output current: 250 A
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP20
- Mounting type: Cabinet / panel mounting
- Frame size: D2h
- Cooling method: Forced air cooling
- Dimensions (H × W × D): approx. 1300 × 700 × 500 mm
- Weight: approx. 118 kg
Advanced Motor Control for Heavy Industrial Applications
Variable frequency drives such as the Danfoss FC-302 optimise motor operation by dynamically regulating output voltage and frequency according to process demand. This improves operational efficiency, reduces mechanical stress and lowers overall energy consumption across industrial automation systems.
The VLT® AutomationDrive range is developed for demanding industrial environments requiring dependable motor control, communication flexibility and seamless automation integration. Its compatibility with PLC systems and industrial networks makes it ideal for large-scale automation projects and production systems.
Typical Applications
- Large industrial pumps and water treatment systems.
- Compressors and heavy-duty fan systems.
- Industrial conveyors and material handling equipment.
- HVAC and large ventilation systems.
- Manufacturing and process automation machinery.
- OEM machinery and industrial production systems.
Frequently Asked Questions
What is the Danfoss 131B8644 used for?
This drive controls the speed and torque of large three-phase AC motors used in industrial automation and heavy-duty machinery applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of 132 kW / 180 HP.
What supply voltage does the drive require?
The Danfoss 131B8644 operates from a three-phase 380–500 V AC supply.
What protection rating does the drive provide?
This model features an IP20 protection rating designed for installation within industrial electrical cabinets.
Where is this drive typically installed?
The drive is typically installed inside industrial control panels and automation systems used in manufacturing, processing and heavy industrial environments.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive FC-302 drives are trusted worldwide for dependable motor control, advanced automation integration and energy-efficient industrial performance.
| Manufacturer Part Number | 131B8644 |
|---|---|
| Barcode | 5702427375352 |
| Height | 780mm |
| Width | 370mm |
| Depth | 332mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP21 |
| KW Rating | 55kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P55KT5E21H1XGXXXXSXXXXA0BXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
