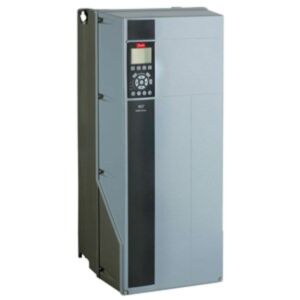

131B8382 Danfoss VLT Automation Drive FC 300 75 KW / 100 HP, 380 - 500 VAC, IP55
MPN: 131B8382
Alt. SKU: FC-302P75KT5P55H1BGXXXXSXXXXAXBXCXXXXDX
Special Price
£10,928.70
£9,107.25
Regular Price
£14,571.60
Why Choose the Danfoss 131B8382 VLT® AutomationDrive FC-302?
The Danfoss 131B8382 is a robust and energy-efficient AC variable frequency drive (VFD) from the advanced VLT® AutomationDrive FC-302 series, designed for precise motor control in demanding industrial automation applications. Engineered for reliability, flexibility and high-performance operation, this drive is widely used across manufacturing, processing and OEM machinery environments.
The FC-302 range is recognised for its intelligent motor control capabilities, flexible communication integration and energy-saving performance. The Danfoss 131B8382 helps optimise machine efficiency, reduce operational costs and improve process reliability through advanced speed and torque control functionality.
With a rated output power of 37 kW / 50 HP and a three-phase 380–500 V AC supply, this drive is ideal for pumps, compressors, conveyors, fans and heavy-duty industrial machinery. Its industrial panel-mounted design allows straightforward installation inside electrical control cabinets and automation systems.
Key Advantages
- Industrial-grade variable frequency drive for advanced automation systems.
- 37 kW / 50 HP motor power rating suitable for demanding applications.
- Three-phase 380–500 V AC input compatible with industrial electrical networks.
- Advanced motor control improves efficiency and process accuracy.
- Integrated communication functionality for automation integration.
- Reliable Danfoss engineering for continuous industrial operation.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 37 kW / 50 HP rated output power.
- 72 A nominal output current.
- Three-phase 380–500 V AC input supply.
- Integrated RFI filter for EMC compliance.
- Advanced vector motor control technology.
- Built-in programmable logic and communication interfaces.
- Industrial panel-mounted construction.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: FC-302P37KT5E20H1XGXXXXSXXXXAXBXCXXXXDX
- SKU: 131B8382
- Product type: AC variable frequency drive
- Rated output power: 37 kW / 50 HP
- Rated output current: 72 A
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP20
- Mounting type: Cabinet / panel mounting
- Frame size: B1
- Cooling method: Forced air cooling
- Dimensions (H × W × D): approx. 650 × 308 × 375 mm
- Weight: approx. 27 kg
Advanced Motor Control for Industrial Applications
Variable frequency drives such as the Danfoss FC-302 regulate motor speed and torque by adjusting output voltage and frequency according to process requirements. This enables improved efficiency, lower energy consumption and reduced mechanical wear across industrial automation systems.
The VLT® AutomationDrive series is engineered for demanding industrial environments requiring dependable operation, communication flexibility and accurate motor control. Its seamless integration with PLCs and industrial networks makes it suitable for a broad range of automation applications.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and fan systems.
- Manufacturing and processing machinery.
- Packaging and automation equipment.
- HVAC and ventilation systems.
- OEM machinery and industrial automation installations.
Frequently Asked Questions
What is the Danfoss 131B8382 used for?
This drive controls the speed and torque of three-phase AC motors used in industrial automation and heavy-duty machinery applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of 37 kW / 50 HP.
What supply voltage does the drive require?
The Danfoss 131B8382 operates from a three-phase 380–500 V AC supply.
What protection rating does the drive provide?
This model features an IP20 protection rating designed for installation inside industrial control cabinets.
Where is this drive typically installed?
The drive is typically installed inside industrial control panels and automation systems used in manufacturing and industrial processing environments.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive FC-302 drives are trusted worldwide for dependable motor control, advanced automation integration and energy-efficient industrial operation.
| Manufacturer Part Number | 131B8382 |
|---|---|
| Barcode | 5702427371132 |
| Height | 780mm |
| Width | 370mm |
| Depth | 332mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP55 |
| KW Rating | 75kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P75KT5P55H1BGXXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
