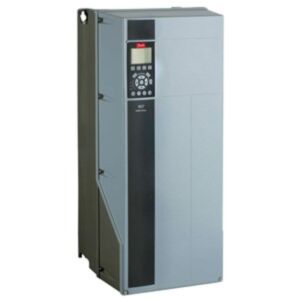

131B6808 Danfoss VLT Automation Drive FC 300 45 KW / 60 HP, 380 - 500 VAC, IP55
MPN: 131B6808
Alt. SKU: FC-302P45KT5E55H2XGCXXXSXXXXAXBXCXXXXDX
Special Price
£7,294.50
£6,078.75
Regular Price
£9,726.00
Why Choose the Danfoss 131B6808 VLT AutomationDrive FC-302?
The Danfoss 131B6808 is a high-performance VLT® AutomationDrive FC-302 variable frequency drive (VFD) designed for advanced industrial motor control and demanding automation applications. Engineered to provide accurate speed and torque regulation of three-phase AC motors, this drive delivers exceptional efficiency, operational reliability and flexible integration into modern industrial systems.
Part of the industry-leading Danfoss VLT® AutomationDrive FC-300 series, the FC-302 combines intelligent motor management with advanced automation functionality and rugged industrial protection. Its flexible modular design improves process performance, reduces downtime and helps optimise energy efficiency across a wide range of industrial applications.
With a rated output power of 45 kW and a three-phase 380–500 V AC supply, the Danfoss 131B6808 is ideal for conveyors, pumps, compressors, fans and industrial process machinery. The integrated IP55 / Type 12 enclosure provides reliable protection against dust and industrial contaminants, ensuring dependable operation in challenging environments.
Key Advantages
- Industrial-grade variable frequency drive for automation systems.
- 45 kW output power suitable for demanding motor control applications.
- Three-phase 380–500 V AC input compatible with industrial electrical systems.
- IP55 / Type 12 enclosure protection for industrial environments.
- Integrated RFI filter for improved EMC performance.
- Advanced motor control improves operational precision and energy efficiency.
- Graphical local control panel simplifies setup and diagnostics.
- Flexible automation and industrial communication compatibility.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 45 kW / 60 HP rated output power.
- 380–500 V AC three-phase input supply.
- IP55 / Type 12 enclosure rating.
- Integrated RFI filter.
- Graphical local control panel (LCP).
- Coated PCB for improved durability.
- Automatic Motor Adaptation (AMA).
- Automatic Energy Optimisation (AEO).
- Integrated motion controller functionality.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: FC-302P45KT5E55H2XGCXXXSXXXXAXBXCXXXXDX
- Manufacturer Part Number: 131B6808
- Product type: Variable frequency drive
- Rated output power: 45 kW / 60 HP
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP55 / Type 12
- RFI filter: Integrated
- Brake chopper: No brake chopper
- Mounting type: Wall / cabinet mounting
- Frame size: C1
- Dimensions (H × W × D): approx. 685 × 308 × 311 mm
- Weight: approx. 39 kg
Advanced Motor Control for Industrial Applications
The Danfoss FC-302 AutomationDrive series is developed to deliver efficient and accurate control of industrial AC motors in automation and process systems. By dynamically regulating motor voltage and frequency, the drive improves process stability, enhances energy efficiency and reduces mechanical wear on connected equipment.
Its rugged enclosure and intelligent heat management system enable reliable operation in industrial environments while reducing cooling requirements and simplifying installation. Combined with advanced automation functionality and flexible communication support, the drive integrates seamlessly into modern industrial production systems.
Typical Applications
- Industrial conveyor and material handling systems.
- Pumps, compressors and industrial fan systems.
- Manufacturing and process machinery.
- Industrial process automation systems.
- Water and wastewater treatment facilities.
- Industrial HVAC and ventilation applications.
- OEM machinery and automation equipment.
Frequently Asked Questions
What is the Danfoss 131B6808 used for?
The Danfoss 131B6808 is used for controlling the speed and torque of three-phase AC motors in industrial automation and process control applications.
What motor size does this drive support?
This drive supports motors up to 45 kW / 60 HP.
What power supply does the drive require?
The FC-302 operates using a three-phase 380–500 V AC power supply.
Is the Danfoss 131B6808 suitable for industrial environments?
Yes, the drive features an IP55 / Type 12 enclosure designed for reliable operation in industrial environments exposed to dust and contaminants.
Does this drive include advanced motor optimisation features?
Yes, the drive includes features such as Automatic Motor Adaptation (AMA) and Automatic Energy Optimisation (AEO) to improve efficiency and motor performance.
Trusted by Industrial Automation Professionals Worldwide
Danfoss VLT® AutomationDrive solutions are trusted globally by industrial engineers, OEM manufacturers and automation specialists for delivering dependable motor control, energy efficiency and reliable long-term industrial performance.
| Manufacturer Part Number | 131B6808 |
|---|---|
| Barcode | 5702427348653 |
| Height | 685mm |
| Width | 308mm |
| Depth | 311mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP55 |
| KW Rating | 45kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P45KT5E55H2XGCXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
