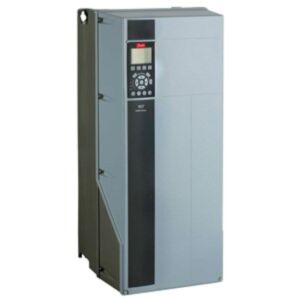

131B6648 Danfoss VLT Automation Drive FC 300 30 KW / 40 HP, 380 - 500 VAC, IP66
MPN: 131B6648
Alt. SKU: FC-302P30KT5E66H1XGXXXXSXXXXAXBXCXXXXDX
Special Price
£5,607.90
£4,673.25
Regular Price
£7,477.20
Why Choose the Danfoss 131B6648 VLT AutomationDrive FC-302?
The Danfoss 131B6648 is a powerful and highly reliable VLT® AutomationDrive FC-302 variable frequency drive (VFD) engineered for advanced industrial motor control applications. Designed to deliver accurate speed and torque control for three-phase motors, this drive is ideal for demanding automation systems, production machinery and process control environments.
Part of the trusted Danfoss VLT® AutomationDrive FC-300 series, the FC-302 provides flexible motor control functionality combined with high efficiency and robust protection. Its integrated intelligent features simplify commissioning and improve machine performance while reducing operational energy consumption.
With a rated output power of 30 kW and a three-phase 380–500 V AC supply, the Danfoss 131B6648 is suitable for conveyors, pumps, fans, compressors, processing systems and heavy-duty industrial machinery. The robust IP66 / NEMA 4X enclosure allows installation in harsh industrial environments where dust and moisture protection are essential.
Key Advantages
- High-performance variable frequency drive for industrial automation.
- 30 kW output power suitable for demanding motor applications.
- Three-phase 380–500 V AC input compatible with industrial power systems.
- IP66 / NEMA 4X protection for harsh operating environments.
- Integrated RFI Class A1/B (C1) filter for improved EMC performance.
- Advanced motor control improves energy efficiency and operational precision.
- Graphical local control panel for simplified commissioning and diagnostics.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 30 kW / 40 HP rated output power.
- 380–500 V AC three-phase input supply.
- IP66 / NEMA 4X enclosure protection.
- Integrated RFI Class A1/B (C1) filter.
- Graphical local control panel (LCP).
- Flexible automation and communication compatibility.
- Designed for industrial machinery and process automation.
- Reliable operation in demanding industrial environments.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- Model: FC-302P30KT5E66H1XGXXXXSXXXXAXBXCXXXXDX
- Manufacturer Part Number: 131B6648
- Product type: Variable frequency drive
- Rated output power: 30 kW / 40 HP
- Input voltage: 380–500 V AC
- Input phases: Three-phase
- Frequency: 50 / 60 Hz
- Protection rating: IP66 / NEMA 4X
- RFI filter: Class A1/B (C1)
- Brake chopper: No brake chopper
- Mounting type: Wall / cabinet mounting
- Frame size: C1
- Dimensions (H × W × D): approx. 685 × 308 × 311 mm
- Weight: approx. 40.39 kg
Advanced Motor Control for Industrial Applications
The Danfoss FC-302 AutomationDrive series is developed for complex industrial automation applications requiring accurate speed regulation, high starting torque and dependable performance. By dynamically controlling motor voltage and frequency, the drive improves process precision while helping reduce wear on mechanical systems.
Its durable IP66 enclosure makes the drive suitable for installation in challenging industrial environments without requiring additional protective cabinets. Combined with advanced communication options and flexible programming, the drive integrates seamlessly into modern industrial control systems and automation networks.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and fan systems.
- Food and beverage processing equipment.
- Packaging and manufacturing machinery.
- Process automation systems.
- Heavy-duty industrial motor control applications.
- Water and wastewater treatment systems.
Frequently Asked Questions
What is the Danfoss 131B6648 used for?
The Danfoss 131B6648 is used for controlling the speed and torque of three-phase AC motors in industrial automation and process control applications.
What motor size does this drive support?
This drive is rated for motors up to 30 kW / 40 HP.
What supply voltage does the drive require?
The FC-302 operates using a three-phase 380–500 V AC power supply.
Is the Danfoss 131B6648 suitable for harsh environments?
Yes, the drive features an IP66 / NEMA 4X enclosure designed for harsh industrial environments with exposure to dust and moisture.
Does this drive include EMC filtering?
Yes, the drive includes an integrated RFI Class A1/B (C1) filter for improved electromagnetic compatibility.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive solutions are widely trusted by OEMs, automation engineers and industrial operators for delivering dependable motor control, energy efficiency and long-term operational reliability.
| Manufacturer Part Number | 131B6648 |
|---|---|
| Barcode | 5702427346727 |
| Height | 685mm |
| Width | 308mm |
| Depth | 311mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP66 |
| KW Rating | 30kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P30KT5E66H1XGXXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
