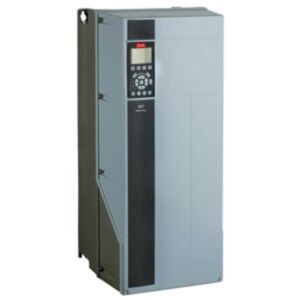

131B4577 Danfoss VLT Automation Drive FC 300 37 KW / 50 HP, 380 - 500 VAC, IP55
MPN: 131B4577
Alt. SKU: FC-302P37KT5E55H1XGXXXXSXXXXAXBXCXXXXDX
Special Price
£6,192.00
£5,160.00
Regular Price
£8,256.00
Why Choose the Danfoss 131B4577 VLT® AutomationDrive FC 302?
The Danfoss 131B4577 is a high-performance AC variable frequency drive (VFD) from the advanced Danfoss VLT® AutomationDrive FC 302 series, engineered for demanding industrial automation and process control applications. Designed for precise motor speed and torque control, this drive delivers exceptional reliability, intelligent diagnostics and energy-efficient operation across a broad range of industrial systems.
The VLT® AutomationDrive FC 302 range is recognised worldwide for advanced motor control capabilities, flexible communication options and rugged industrial construction. This model is ideal for conveyors, pumps, compressors, fans and heavy-duty process machinery requiring dependable long-term operation and advanced automation functionality.
With a rated output power of 37 kW and a three-phase 380–500 V AC supply, the Danfoss 131B4577 is suitable for demanding industrial motor control applications. Its IP55 / Type 12 enclosure provides enhanced protection against dust and industrial environmental conditions, making it ideal for harsh operating environments.
Key Advantages
- Advanced variable frequency drive for industrial automation systems.
- 37 kW motor power rating suitable for heavy-duty industrial applications.
- Three-phase 380–500 V AC input compatible with industrial power systems.
- IP55 / Type 12 enclosure for improved environmental protection.
- Integrated graphical control panel for simplified commissioning and diagnostics.
- Reliable Danfoss AutomationDrive technology trusted worldwide.
Key Features
- Danfoss VLT® AutomationDrive FC 302 series.
- 37 kW rated output power (HO).
- 73 A continuous output current (HO).
- Three-phase 380–500 V AC input supply.
- IP55 / Type 12 industrial enclosure.
- Integrated RFI Class A1/B (C1) EMC filter.
- Graphical Local Control Panel (LCP).
- No integrated brake chopper configuration.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC 302
- Model: 131B4577
- Product type: AC variable frequency drive
- Rated output power (HO): 37 kW
- Rated output power (NO): 45 kW
- Continuous output current (HO): 73 A
- Continuous output current (NO): 90 A
- Input voltage: 380–500 V AC
- Input phases: 3-phase
- Output frequency: 0–590 Hz
- Frequency: 50 / 60 Hz
- Protection rating: IP55 / Type 12
- Mounting type: Wall / cabinet mounting
- Cooling method: Fan cooled
- Frame size: C1
- Dimensions (H × W × D): approx. 685 × 308 × 311 mm
- Weight: approx. 41.2 kg
Advanced Motor Control for Industrial Systems
Variable frequency drives such as the Danfoss VLT® AutomationDrive FC 302 regulate motor speed and torque by adjusting output voltage and frequency. This improves process precision, lowers energy consumption and reduces mechanical wear across industrial automation systems and production machinery.
The FC 302 series is designed for demanding industrial environments requiring intelligent diagnostics, flexible networking and dependable long-term performance. Integrated EMC filtering, rugged IP55 construction and graphical control functionality help ensure reliable operation across a wide range of industrial applications.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and booster systems.
- Fans, HVAC and ventilation equipment.
- Production and processing machinery.
- Water and wastewater treatment systems.
- Industrial automation and process control systems.
Frequently Asked Questions
What is the Danfoss 131B4577 used for?
This drive controls the speed and torque of three-phase AC motors used in industrial automation and heavy-duty process control applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of approximately 37 kW in high overload operation.
What supply voltage does the drive require?
The Danfoss 131B4577 operates from a three-phase 380–500 V AC supply.
What enclosure protection does this drive provide?
This model features an IP55 / Type 12 enclosure designed to provide protection against dust and industrial environmental conditions.
Does this drive include a brake chopper?
No, this configuration is supplied without an integrated brake chopper.
Trusted by Industrial Automation Professionals
Danfoss VLT® AutomationDrive FC 302 variable frequency drives are trusted worldwide for advanced motor control, industrial reliability and energy-efficient operation across demanding automation applications.
| Manufacturer Part Number | 131B4577 |
|---|---|
| Barcode | 5702427312586 |
| Height | 685mm |
| Width | 308mm |
| Depth | 311mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP55 |
| KW Rating | 37kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P37KT5E55H1XGXXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
