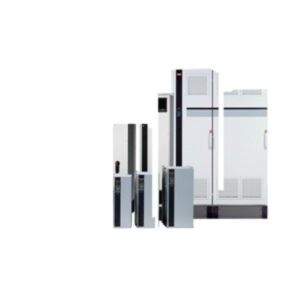

131B3079 VLT FC202-P250 250KW/480Amps IP20 Standard Version, No Keypad, Fan and Pump Drive
MPN: 131B3079
Alt. SKU: FC-302P7K5T6E20HXXNXXXXSXXXXA0BXCXXXXDX
Special Price
£1,741.67
£1,451.39
Regular Price
£2,322.22
Why Choose the 131B3079?
The Danfoss 131B3079 (model code FC-302P7K5T6E20HXXNXXXXSXXXXA0BXCXXXXDX) is a Variable speed drive (frequency converter) intended for panel installation where accurate motor control, repeatable commissioning, and reliable like-for-like replacement are required.
Configured with Power: (P7K5) 7.5 KW / 10 HP, Current: 11, Supply: 525 - 600 VAC, Phase: Three phase, Enclosure: (E20) IP20 / Chassis, EMC/RFI: No RFI Filter to support correct selection and like-for-like replacements.
Key Benefits
- Variable speed drive (frequency converter) for correct application matching
- Configured with Power: (P7K5) 7.5 KW / 10 HP, Current: 11, Supply: 525 - 600 VAC, Phase: Three phase, Enclosure: (E20) IP20 / Chassis, EMC/RFI: No RFI Filter.
- Suitable for panel installations where reliable commissioning is required.
- SKU and model code shown for procurement and like for like replacements.
Technical Specifications
- Series: 302
- Power Rating: (P7K5) 7.5 KW / 10 HP
- Mains Voltage: 525 - 600 VAC
- Phase: Three phase
- Enclosure: (E20) IP20 / Chassis
- RFI Filter: No RFI Filter
- Height [mm]: 268,0
- Width w/ no C options [mm]: 130,0
- Depth [mm]: 205,0
- Net weight: 6.22 Kilogram
- EAN: 5710107217168
- A Option: PROFIBUS DP MCA 101
- Adaptation A: Standard Cable Entries
- Adaptation B: No adaptation
- B Option: No B Option
- Brake - Safe Stop: No brake chopper
- C Option Software: No software option
- C0 Option MCO: No C0 option
- C1 Option: No C1 option
- Coating PCB: Not coated PCB
- Continuous Current (HO) [A]: 11
- D Option: No D option
- Depth with Option A/B [mm]: 220,0
- Frame Size: A3
- Gross weight: 7.226 Kilogram
- Intermittent Current (HO) [A]: 17.6
- LCP: Numerical Loc. Cont. Panel
- Mains Option: No Mains Option
- Modelcode01: FC-302P7K5T6E20HXXNX
- Modelcode02: XXXSXXXXA0BXCXXXXDX
- Power 160% (HO) [KW]: 7.5
- Power Loss HO [W]: 261
- Product Group: VLT® AutomationDrive FC-
- Software Language Pack: Standard Language Pack
- Software Release: Latest release std. SW.
- Typecode Part 1: FC-302P7K5T6E20HXXNX
- Typecode Part 2: XXXSXXXXA0BXCXXXXDX
- Width w/ two C options [mm]: 190,0
Frequently Asked Questions
What supply does Danfoss 131B3079 require?
It is specified for 525 - 600 VAC. Match this to your incoming mains.
What is the rated power for 131B3079?
The listed power rating is (P7K5) 7.5 KW / 10 HP. Confirm sizing against your motor and duty cycle.
What enclosure class is it?
It is listed as (E20) IP20 / Chassis and is intended for installation in a suitable cabinet/enclosure as required.
Does it include an EMC/RFI filter?
The configuration is shown as No RFI Filter. Choose a filtered variant or external filtering if your site requires it.
Where is 131B3079 typically installed?
In control panels or cabinets. Follow Danfoss installation guidance for clearances, earthing, and protective devices.
What does IP20 mean for 131B3079?
IP20 indicates protection against finger contact and solid objects over 12.5 mm. Install in a suitable enclosure to meet your site requirements.
| Manufacturer Part Number | 131B3079 |
|---|---|
| Barcode | 5710107217168 |
| Filter | Industrial Filter |
| Degree of protection (IP) | IP20 |
| KW Rating | 250kW, 315kW, 355kW |
| VSD Range | Danfoss VLT FC202 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P7K5T6E20HXXNXXXXSXXXXA0BXCXXXXDX |
