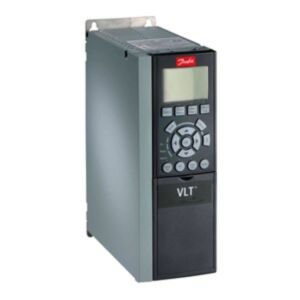

131B0763 Danfoss VLT Automation Drive FC 300 3.0 KW / 4.0 HP, 380 - 500 VAC, IP20
MPN: 131B0763
Alt. SKU: FC-302P3K0T5E20H1BXXXXXSXXXXA0BXCXXXXD0
Special Price
£1,332.90
£1,110.75
Regular Price
£1,777.20
Why Choose the Danfoss 131B0763 VLT AutomationDrive FC 302?
The Danfoss 131B0763 is a compact and highly reliable frequency converter built on the advanced VLT® AutomationDrive FC 302 platform. It is designed for precise speed and torque control of three-phase motors in industrial machinery, automation systems and process equipment.
This drive provides dependable motor control performance while helping improve machine efficiency and operational consistency. With its modular configuration and cabinet-friendly design, the 131B0763 is well suited to control panels and industrial installations where flexibility and reliability are essential.
With a rated output power of 3.0 kW / 4.0 HP and a three-phase 380-500 V AC supply, the 131B0763 is ideal for pumps, fans, conveyors, mixers and other industrial motor applications. The drive’s IP20 / chassis enclosure allows straightforward installation inside electrical cabinets.
Key Advantages
- Compact variable speed drive designed for industrial automation applications.
- 3.0 kW / 4.0 HP motor power rating suitable for a wide range of equipment.
- Three-phase 380-500 V AC input for common industrial supply systems.
- Integrated brake chopper for controlled deceleration.
- PROFIBUS DP communication option supports automation integration.
- RFI Class A1/B (C1) filtering supports EMC performance.
Key Features
- Danfoss VLT AutomationDrive FC 302 series.
- 3.0 kW rated output power.
- 7.2 A continuous current.
- Three-phase 380-500 V AC input supply.
- IP20 / chassis enclosure for cabinet mounting.
- Frame size A2.
- Integrated brake chopper.
- PROFIBUS DP MCA 101 communication option.
- MCB-107 24V DC backup.
- Not coated PCB.
- No local control panel.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT AutomationDrive FC 302
- Model: 131B0763
- Product type: Frequency converter / variable speed drive
- Model code: FC-302P3K0T5E20H1BXXXXXSXXXXA0BXCXXXXD0
- Rated output power: 3.0 kW / 4.0 HP
- Continuous current: 7.2 A
- Intermittent current: 11.5 A
- Input voltage: 380-500 V AC
- Input phases: 3-phase
- Protection rating: IP20 / chassis
- Frame size: A2
- RFI filter: Class A1/B (C1)
- Brake function: Brake chopper
- LCP: No local control panel
- PCB coating: Not coated
- Mains option: No mains option
- Backup option: MCB-107 24V DC backup
- Height: 268 mm
- Width: 90 mm
- Width with two C options: 150 mm
- Depth: 205 mm
- Depth with option A/B: 220 mm
- Net weight: 4.67 kg
- Gross weight: 5.516 kg
- Volume: 21.569 L
- EAN: 5702427153455
Reliable Motor Control for Industrial Machinery
Variable frequency drives such as the Danfoss VLT AutomationDrive regulate motor speed by adjusting output voltage and frequency. This helps machinery operate with greater precision, smoother starts and stops, and improved process efficiency.
The FC 302 platform is designed for demanding industrial environments where flexible configuration, dependable performance and integration with automation networks are important. Its brake chopper, PROFIBUS compatibility and cabinet-ready format make it a practical choice for modern control systems.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, fans and ventilation equipment.
- Packaging and production machinery.
- Mixers and process equipment.
- OEM automation systems and machine building.
- General industrial motor control installations.
Frequently Asked Questions
What is the Danfoss 131B0763 used for?
This drive controls the speed and torque of three-phase AC motors used in industrial automation and machinery applications.
What motor power is supported by this drive?
The drive supports motors with a rated output power of approximately 3.0 kW / 4.0 HP.
What supply voltage does the drive require?
The 131B0763 operates from a three-phase 380-500 V AC supply.
What safety and control features are included?
The drive includes a brake chopper, PROFIBUS DP MCA 101 communication support and MCB-107 24V DC backup.
Where is this drive typically installed?
The drive is typically installed inside electrical control panels or machine cabinets as part of industrial automation systems.
Trusted by Automation Engineers Worldwide
Danfoss VLT AutomationDrive FC 302 drives are widely used to deliver reliable motor control, efficient operation and seamless integration into modern industrial equipment.
| Manufacturer Part Number | 131B0763 |
|---|---|
| Barcode | 5702427153455 |
| Height | 268mm |
| Width | 90mm |
| Depth | 205mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 3kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302P3K0T5E20H1BXXXXXSXXXXA0BXCXXXXD0 |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
