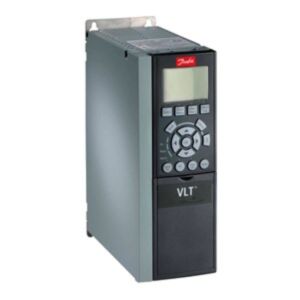

131B0125 Danfoss VLT Automation Drive FC 300 0.75 KW / 1.0 HP, 380 - 500 VAC, IP20
MPN: 131B0125
Alt. SKU: FC-302PK75T5E20H1XGCXXXSXXXXAXBXCXXXXDX
Special Price
£738.90
£615.75
Regular Price
£985.20
Why Choose the Danfoss 131B0125 VLT AutomationDrive FC-302?
The Danfoss 131B0125 is a compact and reliable AC variable frequency drive (VFD) from the VLT® AutomationDrive FC-302 series, designed for accurate speed and torque control of three-phase AC motors in industrial machinery, automation systems and process equipment. This frequency converter provides dependable motor control where efficient operation, flexible configuration and straightforward integration are required.
As part of the advanced Danfoss FC-302 platform, this drive is suitable for a wide range of automation and machine control tasks. It features an integrated RFI Class A1/B (C1) filter, graphical local control panel, IP20 chassis enclosure, coated PCB and compact A2 frame size, making it well suited to installation inside electrical cabinets and industrial control panels.
With a rated motor power of 0.75 kW / 1.0 HP and a three-phase 380-500 V AC supply, the Danfoss 131B0125 is ideal for small industrial motors used in conveyors, pumps, fans, dosing systems, packaging machinery and general automation equipment. This version is supplied with no brake chopper and a graphical local control panel, making it suitable for systems where local setup and monitoring are required.
Key Advantages
- Compact Danfoss VLT® AutomationDrive FC-302 frequency converter.
- 0.75 kW / 1.0 HP motor power rating for smaller industrial automation applications.
- Three-phase 380-500 V AC input for standard industrial power systems.
- Integrated RFI Class A1/B (C1) filter to support EMC performance in electrical installations.
- Graphical local control panel for convenient setup, monitoring and operation.
- Coated PCB for improved protection in demanding control cabinet environments.
Key Features
- Danfoss VLT® AutomationDrive FC-302 series.
- 0.75 kW / 1.0 HP rated motor power.
- Three-phase 380-500 V AC mains voltage.
- IP20 / chassis enclosure for control cabinet installation.
- A2 frame size.
- Integrated RFI Class A1/B (C1) filter.
- No brake chopper configuration.
- Graphical local control panel included.
- Coated PCB.
- Latest standard software release.
Technical Specifications
- Manufacturer: Danfoss
- Series: VLT® AutomationDrive FC-302
- SKU: 131B0125
- Model code: FC-302PK75T5E20H1XGCXXXSXXXXAXBXCXXXXDX
- Product type: AC variable frequency drive / frequency converter
- Rated output power: 0.75 kW / 1.0 HP
- Input voltage: 380-500 V AC
- Input phases: 3-phase
- Continuous current: 2.4 / 2.1 A
- Intermittent current: 3.84 / 3.36 A
- kVA rating: 1.66 kVA
- Power loss: approx. 46 W
- Enclosure: IP20 / chassis
- Frame size: A2
- RFI filter: Class A1/B (C1)
- Brake function: No brake chopper
- Control panel: Graphical local control panel
- PCB coating: Coated PCB
- Mains option: No mains option
- A option: No A option
- B option: No B option
- C1 option: No C1 option
- D option: No D option
- Height: approx. 268 mm
- Width: approx. 90 mm without C options
- Width with two C options: approx. 150 mm
- Depth: approx. 205 mm
- Depth with option A/B: approx. 220 mm
- Net weight: approx. 4.39 kg
- Gross weight: approx. 5.236 kg
- EAN: 5702427148574
Reliable Motor Control for Industrial Automation
Variable frequency drives such as the Danfoss VLT® AutomationDrive FC-302 regulate motor speed by adjusting the frequency and voltage supplied to the motor. This helps improve process control, supports efficient operation and reduces unnecessary mechanical stress on motors, gearboxes, belts and driven machinery.
The Danfoss 131B0125 is well suited to industrial control systems where compact size, precise operation and reliable performance are essential. Its integrated RFI filtering, graphical control panel, coated PCB and cabinet-friendly design make it a dependable choice for machine builders, automation engineers and maintenance teams working with lower-power motor applications.
Typical Applications
- Small industrial conveyors and material handling systems.
- Pumps, fans and ventilation equipment.
- Dosing, filling and packaging machinery.
- Mixers, process equipment and production machinery.
- Textile, manufacturing and OEM automation systems.
- Electrical control cabinets and machine panels.
Frequently Asked Questions
What is the Danfoss 131B0125 used for?
The Danfoss 131B0125 is used to control the speed and torque of three-phase AC motors in industrial automation, machinery and process control applications.
What motor power is supported by this drive?
This drive is rated for 0.75 kW / 1.0 HP motor power.
What supply voltage does the Danfoss 131B0125 require?
The drive operates from a three-phase 380-500 V AC supply.
Does this drive include a brake chopper?
No, the Danfoss 131B0125 is supplied in a no brake chopper configuration.
Does this drive include a local control panel?
Yes, the Danfoss 131B0125 includes a graphical local control panel for setup, monitoring and operation.
Trusted by Industrial Automation Engineers
Danfoss VLT® AutomationDrive FC-302 frequency converters are widely used by engineers, machine builders and maintenance teams for reliable motor control, efficient operation and flexible integration into industrial automation systems.
| Manufacturer Part Number | 131B0125 |
|---|---|
| Barcode | 5702427148574 |
| Height | 268mm |
| Width | 90mm |
| Depth | 205mm |
| Filter | Filter Included |
| Input Phases | Three Phase |
| Degree of protection (IP) | IP20 |
| KW Rating | 0.75kW |
| Output Phases | Three phase |
| VSD Range | Danfoss VLT Automation Drive FC 300 |
| Manufacturer | Danfoss |
| Alternative Product SKU | FC-302PK75T5E20H1XGCXXXSXXXXAXBXCXXXXDX |
Write Your Own Review
|
<> |
Simple installation and Start Up Danfoss drives come with pluggable spring loaded I/O terminals, each have a dual connector configuration which faclilitates a simple installation. When the customer requirees a high IP rated drive pre-threaded cable gland openeins can be ordered allowing for an easy and realible installation in harsh enviroments The automation drives graphical control panel option ensures the drive is simple to set up, commission and operate saving on installation and operating costs. |
There are various enclosures options available up to IP 66 (depending on the model). Integrated DC chokes and RFI filters in all models protect installations by minimizing harmonic distortion and electromagnetic interference.
The VLT Automation Drive has an integrated motion controller (IMC) functionality that can be used with applications where the drive is required to perform high-precision positioning and synchronisation operations. The Integrated Motion Controller (IMC) functionality is now configurable in the drive’s software. No additional modules or hardware are necessary.
To ensure the highest quality and reliability all Danfoss drives are fully tested at the factory. They require little maintenance and can ensure there is a fast return on investment.
Supply voltages and power range
3 x 200-240 V...0.25-37 kW
3 x 380-500 V...0.37 kW – 1.1 MW
3 x 525-600 V...0.75-75 kW
3 x 525-690 V...1.1 kW – 1.4 MW
Low harmonic drive
3 x 380-480 V...132-710 kW
12-pulse drive
3 x 380-690 V...250-1200 kW
Features and benefits
- There’s less need for cooling or oversizing as the ambient temperature is 50°C without derating
- The need for PLC capacity is reduced thanks to Smart Logic Control
- Low lifetime costs are ensured as the drive is highly resistant to wear and tear
- The lifetime of electronics is prolonged due to back-channel cooling for frames D, E and F
- Commissioning and upgrades are easy due to plug-in technology
- High-precision position and synchronization thanks to availability of Integrated Motion Controller throughout the entire product range
- Features such as intelligent heat management, Safe stop and Safe Torque Off ensure safe and energy-efficient operation of the drive
Applications
Conveyors, positioning and synchronizing, cranes, mixers, centrifuges and palletizing and packaging machinery.
PC tools
VLT® Motion Control Tool MCT 10
VLT® Motion Control Tool MCT 31
SISTEMA
Danfoss HCS (Harmonic Calculation Software)
Danfoss Servo Sizer
VLT® Energy Box
