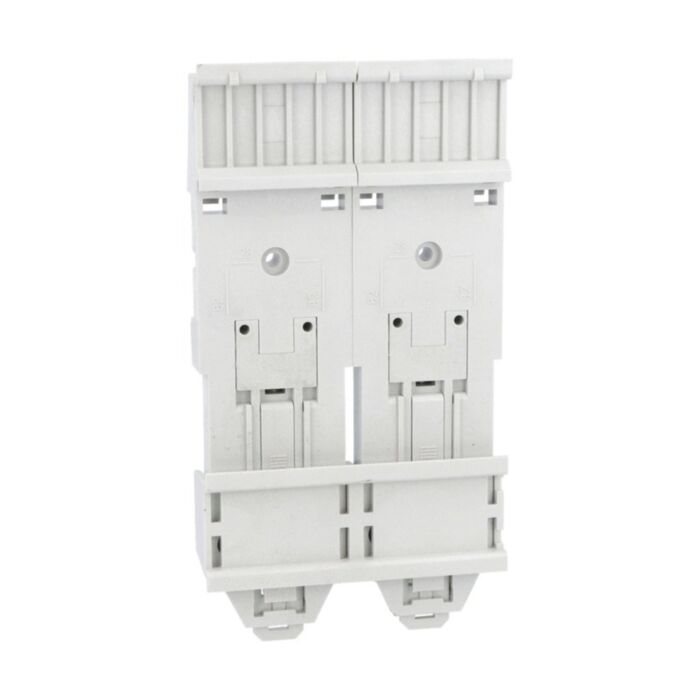

11SMX9014 - ADAPTER PLATE FOR S-D STARTER
MPN: 11SMX9014
Alt. SKU: SMX9014
Why Choose the 11SMX9014?
The Lovato 11SMX9014 adapter plate accessory streamlines star-delta starter assemblies by interfacing an SM1 breaker with 45mm (1.77”) wide contactors BF09A…BF38A. Designed as part of the 11SMX family, it provides a neat, reliable mounting solution that supports consistent panel layouts for machine builders and maintenance teams.
As a Lovato accessory, this starter assembly adapter plate is compatible with SM1P… and SM1R… ranges and weighs just 118 g. It complies with IEC/EN 60947-1 and 60947-5-1, plus UL508 and CSA C22.2 n° 14, giving confidence in performance and suitability for control panels built to international standards.
Key Benefits
- Tailored for star-delta starter assemblies with SM1 breaker interface.
- Supports 45mm BF09A…BF38A contactors for compact, consistent layouts.
- Compatible with SM1P… and SM1R… protection ranges.
- Lightweight 118 g design supports straightforward handling during panel assembly.
- Conforms to IEC/EN 60947, UL508 and CSA C22.2 standards.
- Lovato 11SMX family designation for straightforward selection and pairing.
Technical Specification
- Product type designation: 11SMX
- Weight: 118 g
What’s Included
- Lovato adapter plate 11SMX9014
- Manufacturer product datasheet (online)
Applications
- Star-delta motor starter assemblies with SM1 breaker and BF09A…BF38A contactors
- Control panel builds using SM1P… or SM1R… protection devices
- OEM machine building and standardised panel layouts
- Maintenance, upgrades and retrofit of existing Lovato starter assemblies
Frequently Asked Questions
What is the Lovato 11SMX9014?
An adapter plate accessory for star-delta starter assemblies, linking an SM1 breaker with 45mm BF09A…BF38A contactors.
Which devices is it compatible with?
It is for SM1P… and SM1R… ranges and 45mm (1.77”) BF09A…BF38A contactors.
What standards does it conform to?
IEC/EN 60947-1 and IEC/EN 60947-5-1, plus UL508 and CSA C22.2 n° 14.
How much does it weigh?
The adapter plate weighs 118 g.
What is the product type designation?
The designation is 11SMX.
