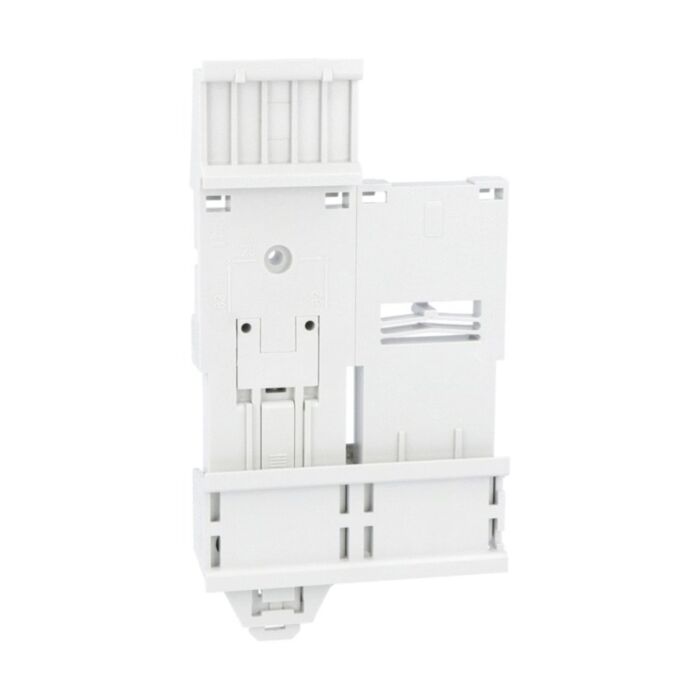

11SMX9012 - ADAPTER PLATE FOR REVERSING STARTER
MPN: 11SMX9012
Alt. SKU: SMX9012
Why Choose the 11SMX9012?
Lovato 11SMX9012 is an adapter plate from the 11SMX series, supplied as Accessories for starter assemblies. It serves reversing contactor assemblies using an SM1 device with BG or BF09A…BF38A contactors, and is specified as Accessories for SM1P... and SM1R… applications. At just 95 g, it provides a compact, dependable interface within compatible Lovato assemblies.
Conforming to IEC/EN 60947-1 and IEC/EN 60947-5-1, and also UL508 and CSA C22.2 n° 14, this plate supports standard-compliant panel integration. Backed by Lovato’s Sustainability certification, it offers assured compatibility when a starter assembly adapter plate is required for SM1P... or SM1R… systems involving SM1 with BG or BF09A…BF38A contactors.
Key Benefits
- Designed for reversing contactor assembly with SM1 and BG or BF09A…BF38A.
- Compatible Accessories for SM1P... and SM1R… starter assemblies.
- Part of the Lovato 11SMX series for assured fit.
- Complies with IEC/EN 60947-1 and 60947-5-1 standards.
- UL508 and CSA C22.2 n° 14 conformity for global acceptance.
- Lightweight 95 g plate aids compact assembly layouts.
Technical Specification
- Product type designation: 11SMX
- Weight: 95 g
What’s Included
- 1 x Lovato 11SMX9012 adapter plate
- Manufacturer product data sheet (download link)
- Standard manufacturer packaging
Applications
- Reversing contactor assemblies using SM1 with BG or BF09A…BF38A.
- Starter assemblies specified for SM1P... and SM1R… devices.
- Integrating Lovato components within 11SMX series configurations.
- Use where a starter assembly adapter plate is required.
Frequently Asked Questions
What is the Lovato 11SMX9012 adapter plate used for?
It is an adapter plate for reversing contactor assemblies using an SM1 with BG or BF09A…BF38A contactors.
Which devices is 11SMX9012 compatible with?
It is Accessories for SM1P... and SM1R… and suits assemblies with SM1 and BG or BF09A…BF38A contactors.
What standards does the 11SMX9012 conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-5-1, UL508 and CSA C22.2 n° 14.
What is the weight of the adapter plate?
The weight is 95 g.
What is its product designation and who manufactures it?
The product type designation is 11SMX and the manufacturer is Lovato.
Safety note: Ensure use only with specified SM1, BG and BF09A…BF38A components, and follow applicable IEC/EN, UL and CSA standards during assembly and commissioning.
| Manufacturer Part Number | 11SMX9012 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975073094 |
| Alternative Product SKU | SMX9012 |
