11RFNA95 - T/O RELAY RFNA9 3-5A

Why Choose the 11RFNA95?

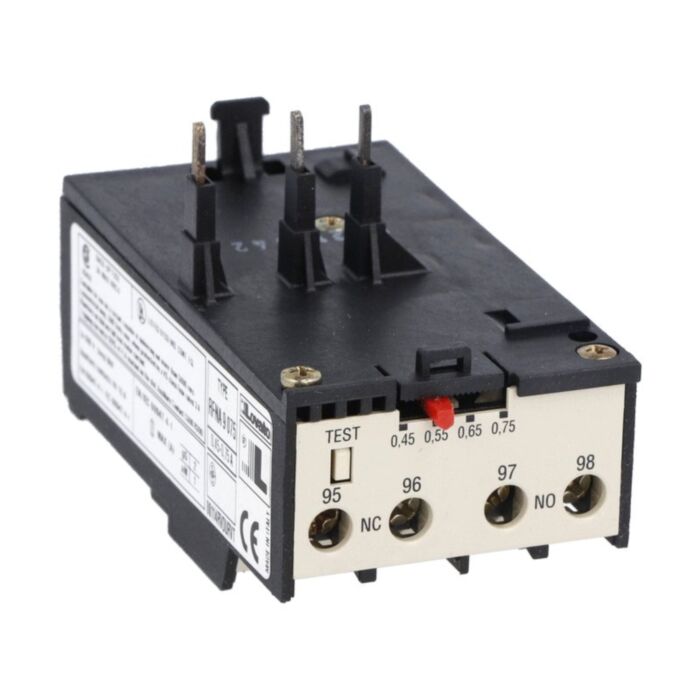

The Lovato 11RFNA95 thermal overload relay provides reliable motor protection in three-phase applications. This non phase failure/non single-phase sensitive, three-pole device features automatic resetting and an operational current range of 3…5 A. Designed for compact assemblies, it mounts directly on BG06, BG09 and BG12 mini-contactors, streamlining installation and saving valuable panel space.

Engineered for robust performance, it offers IP20 frontal protection, rated insulation voltage Ui 690 V and impulse withstand Uimp 8 kV, with Ith 10 A. The unit operates from −20 to +55 °C up to 3000 m altitude and meets IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 n° 14, making it a dependable choice for BG-series motor starters and control panels.

Key Benefits

• Three-pole design for dependable three-phase motor overload protection.
• Automatic resetting minimises intervention and restores service after overloads.
• Operational current range 3…5 A suits small to medium motor loads.
• Direct mounting on BG06, BG09, BG12 mini-contactors for compact assemblies.
• IP20 frontal protection for enhanced operator safety during operation.
• High dielectric performance: Ui 690 V and Uimp 8 kV.
• Standards compliance to IEC/EN 60947, UL508 and CSA C22.2.
• Reliable operation from −20 to +55 °C, up to 3000 m altitude.

Technical Specification

• Number of poles: 3
• Pollution degree: 3
• IP degree (frontal): IP20
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Terminal tightening torque: 2.3 to 2.3 Nm
• Ith (IEC): 10 A
• Operating temperature: -20 to 55 °C
• Storage temperature: -55 to 70 °C
• Max altitude: 3000 m
• Weight: 123 g

What’s Included

• Lovato 11RFNA95 thermal overload relay
• Quick start and installation instructions
• Manufacturer packaging

Applications

• Three-phase motor protection with BG-series mini-contactors
• Control panels requiring automatic reset thermal overload protection
• Compact motor starters built around BG06, BG09 or BG12
• Industrial automation using thermal overload relays within 3…5 A range
• OEM equipment standardised on Lovato BG contactor platforms

Safety note: Installation must be performed by qualified personnel. Isolate power before work, ensure the 3…5 A specification suits the motor, and observe IEC/EN 60947 requirements and IP20 frontal limitations.
