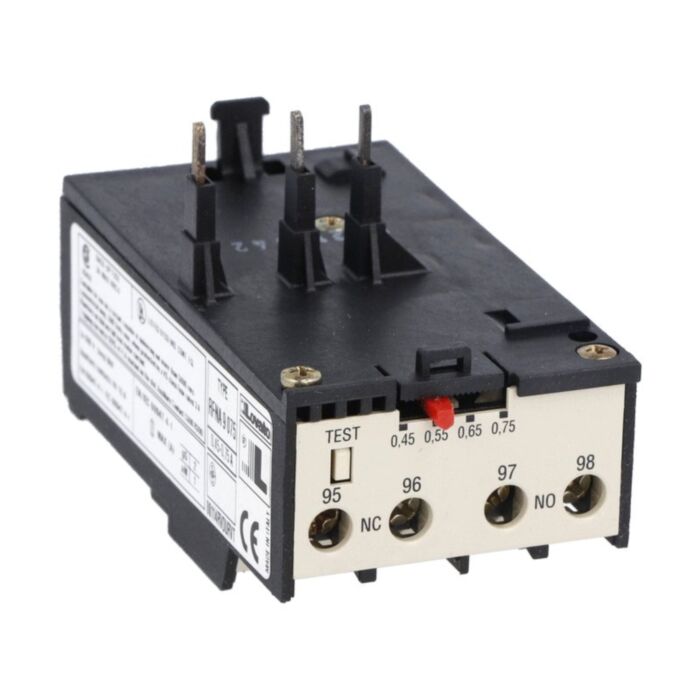

11RFNA915 - T/O RELAY RFNA9 9-15A

Why Choose the 11RFNA915?

The Lovato 11RFNA915 thermal overload relay delivers dependable three‑phase motor protection in the 9…15 A range. This three‑pole, non phase failure / non single‑phase sensitive unit features automatic resetting to minimise downtime. Designed for direct mounting on Lovato BG06, BG09 and BG12 mini‑contactors, it streamlines panel assembly and saves space. With IP20 frontal protection, it’s an efficient choice for compact control panels and OEM builds.

Engineered to international standards, including IEC/EN 60947‑1 and 60947‑4‑1, UL508 and CSA C22.2 n° 14, it offers robust electrical performance. Rated Ui 690 V and Uimp 8 kV, with IP20 frontal protection, it performs reliably from -20 to 55 °C. Ideal for safeguarding motors within the specified operational current, while integrating seamlessly with the Lovato BG contactor platform.

Key Benefits

• Three-pole design for reliable three-phase motor overload protection.
• Operational current range 9…15 A suits common motor sizes.
• Automatic reset function helps restore service quickly after trips.
• Direct mounting on BG06, BG09, BG12 reduces wiring and panel space.
• Non phase failure / non single-phase sensitive operation as specified.
• IP20 frontal protection enhances user safety at the terminals.
• High dielectric strength: Ui 690 V and Uimp 8 kV ratings.
• Conforms to IEC/EN, UL and CSA standards for global compliance.

Technical Specification

• Number of poles: 3
• Pollution degree: 3
• IP degree (frontal): IP20
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Terminal tightening torque: 2.3 to 2.3 Nm
• Ith (IEC): 10 A
• Operating temperature: -20 to 55 °C
• Storage temperature: -55 to 70 °C
• Max altitude: 3000 m
• Weight: 123 g

What’s Included

• Lovato 11RFNA915 thermal overload relay
• Manufacturer documentation

Applications

• Three-phase motor protection in the 9...15 A range
• Direct mounting on Lovato BG06, BG09 and BG12 mini-contactors
• OEM and panel-building projects requiring thermal overload protection
• General industrial machinery protection aligned with IEC/EN, UL and CSA standards

Safety note: Install and commission by qualified personnel only. Isolate power before wiring, and ensure the device is applied within its stated ratings (9...15 A, Ui 690 V, Uimp 8 kV, -20 to 55 °C).
