11RFA95 - T/O RELAY RFA9 3-5A

Why Choose the 11RFA95?

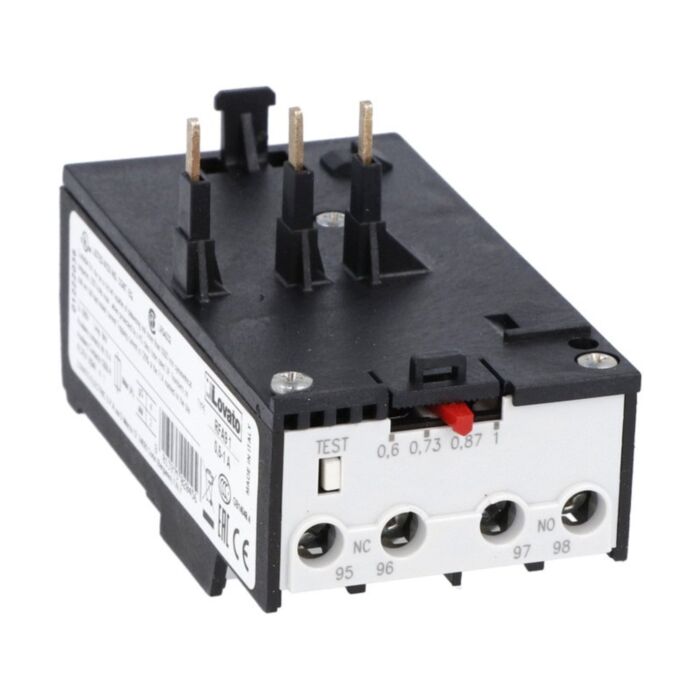

Lovato 11RFA95 is a thermal overload relay designed for reliable motor protection in three‑phase systems. Phase failure/single‑phase sensitive and three‑pole, it provides 3…5 A protection with automatic resetting. The unit mounts directly on BG06, BG09 and BG12 mini‑contactors, simplifying panel layouts and wiring. With an IP20 frontal rating and Ui 690 V, Uimp 8 kV, it supports robust industrial control applications.

Built for demanding environments, the relay carries Pollution degree 3 and a thermal current Ith of 10 A. Operating temperatures span -20 to 55 °C, with storage from -55 to 70 °C, and installation up to 3000 m altitude. Terminal tightening torque is 2.3 Nm. Conforms to IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 n° 14, with a compact 116 g form.

Key Benefits

• Phase failure/single-phase sensitive for dependable motor protection
• 3…5 A operational range suits many light industrial applications
• Automatic reset restores service without manual intervention
• Direct mounting on BG06, BG09 and BG12 mini-contactors
• IP20 frontal protection and Ui 690 V insulation rating
• Robust surge performance with Uimp 8 kV, Pollution degree 3
• Wide operating temperature from -20 to 55 °C

Technical Specification

• Number of poles: 3
• Pollution degree: 3
• IP degree (frontal): IP20
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Terminal tightening torque: 2.3 to 2.3 Nm
• Ith (IEC): 10 A
• Operating temperature: -20 to 55 °C
• Storage temperature: -55 to 70 °C
• Max altitude: 3000 m
• Weight: 116 g

What’s Included

• Lovato 11RFA95 thermal overload relay
• Installation leaflet
• Protective packaging for transit

Applications

• Motor protection for three-phase machinery and pumps
• Phase loss protection in industrial control panels
• Integration with BG06, BG09 and BG12 mini-contactors
• OEM equipment requiring automatic reset overload protection
• Installations needing Ui 690 V insulation and IP20 front

Safety note: Installation and settings should be performed by a qualified electrician. Isolate power before work, verify the 3…5 A setting matches the motor, and mount only on compatible BG mini‑contactors following the manufacturer’s instructions.
