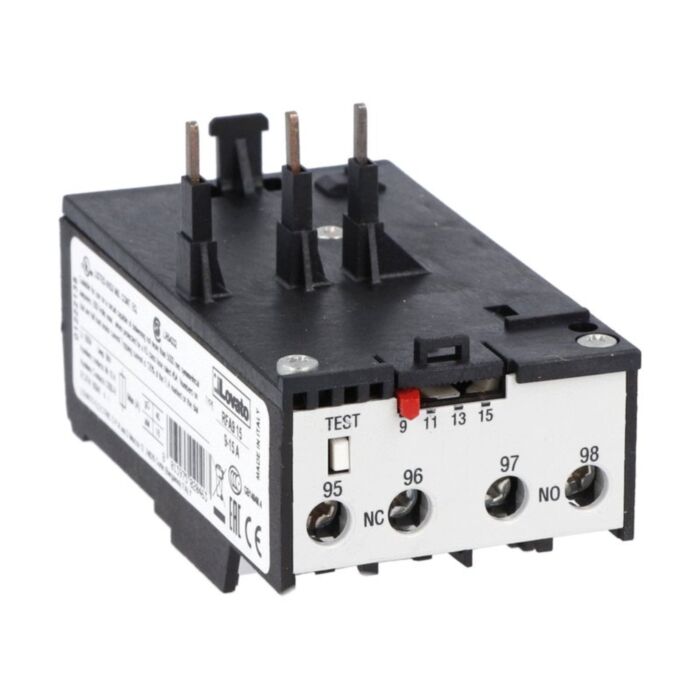

11RFA915 - T/O RELAY RFA9 9-15A

Why Choose the 11RFA915?

Lovato’s 11RFA915 thermal overload relay delivers dependable motor protection with phase failure/single‑phase sensitivity in a compact, three‑pole design. Factory set for automatic resetting, it covers an adjustable 9…15 A range to suit common three‑phase loads. Designed for direct mounting on BG06, BG09 and BG12 mini‑contactors, it streamlines panel assembly while maintaining IP20 frontal protection and robust dielectric performance.

Rated Ui 690 V with 8 kV impulse withstand, the 11RFA915 is engineered for industrial reliability and compliance with IEC/EN 60947-1, IEC/EN 60947-4-1, UL508 and CSA C22.2 n° 14. It operates from −20 to 55 °C up to 3000 m altitude, with Pollution Degree 3 and IP20 front, offering a balanced mix of safety, performance and straightforward installation.

Key Benefits

• Phase failure and single‑phase sensitive protection for reliable motor safeguarding.
• Automatic resetting reduces downtime in suitable controlled applications.
• Direct mounting on BG06, BG09 and BG12 mini‑contactors saves panel space.
• Adjustable 9…15 A operating range suits various three‑phase motor loads.
• 3‑pole design with IP20 front improves safety in control panels.
• Robust Ui 690 V and 8 kV impulse withstand enhance resilience.
• Conforms to IEC/EN, UL and CSA standards for assured compliance.

Technical Specification

• Number of poles: 3
• Pollution degree: 3
• IP degree (frontal): IP20
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Terminal tightening torque: 2.3 to 2.3 Nm
• Ith (IEC): 10 A
• Operating temperature: -20 to 55 °C
• Storage temperature: -55 to 70 °C
• Max altitude: 3000 m
• Weight: 116 g

What’s Included

• Lovato 11RFA915 thermal overload relay
• Installation and operation leaflet
• Protective packaging

Applications

• Motor overload protection in three‑phase circuits
• Panels using Lovato BG06, BG09 or BG12 mini‑contactors
• Installations requiring phase‑failure and single‑phase sensitivity
• Systems needing automatic reset after overload clearance

Safety note: Install and commission only by qualified personnel. Set the relay to the motor’s rated current within 9…15 A, and observe IP20, temperature and altitude limits. Always isolate power before work.
