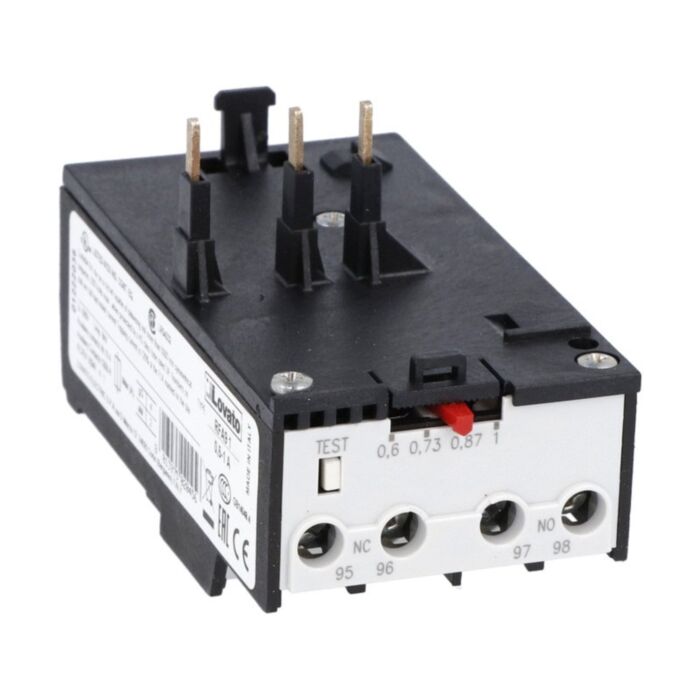

11RFA910 - T/O RELAY RFA9 6-10A

Why Choose the 11RFA910?

Designed for reliable motor protection, the Lovato 11RFA910 thermal overload relay offers phase failure/single‑phase sensitivity and automatic resetting for hassle‑free recovery. This three‑pole unit covers 6–10 A operational current and mounts directly on BG06, BG09 and BG12 mini‑contactors, streamlining panel assembly. It helps safeguard motors against overloads and phase loss, supporting dependable operation in three‑phase control applications.

Engineered for demanding environments, it features IP20 frontal protection and is rated Ui 690 V with 8 kV impulse withstand. Suitable for pollution degree 3 and operation from −20 to 55 °C, it supports installations up to 3000 m. Terminal tightening torque is 2.3 Nm. Compliance with IEC/EN 60947‑1 and 60947‑4‑1, plus UL508 and CSA C22.2 No. 14, supports assured performance.

Key Benefits

• Phase failure/single‑phase sensitivity improves motor protection during supply imbalance.
• Automatic resetting enables swift restart after overload trips.
• Direct mounting on BG06, BG09 and BG12 mini‑contactors simplifies assembly.
• Wide 6–10 A operational range suits common motor sizes.
• IP20 frontal protection and Ui 690 V for robust industrial use.
• Certified to IEC/EN 60947‑1/‑4‑1, UL508 and CSA C22.2 No. 14.

Technical Specification

• Number of poles: 3
• Pollution degree: 3
• IP degree (frontal): IP20
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 8 kV
• Terminal tightening torque: 2.3 to 2.3 Nm
• Ith (IEC): 10 A
• Operating temperature: -20 to 55 °C
• Storage temperature: -55 to 70 °C
• Max altitude: 3000 m
• Weight: 116 g

What’s Included

• Lovato 11RFA910 thermal overload relay unit
• Installation and safety instructions
• Product datasheet (online)

Applications

• Overload and phase-loss protection for three‑phase motors
• Direct-fit motor starters using BG06, BG09 or BG12 mini‑contactors
• OEM and panel‑builder control systems requiring automatic reset
• General industrial machinery protection within 6–10 A range

Safety note: Install and commission only by qualified personnel. Set, wire and operate the relay within the specified current, environmental limits and standards to ensure safe motor protection.
