11BGTP0901D024 - REVERSING CONTACTOR 9A AC3 REAR PIN

Why Choose the 11BGTP0901D024?

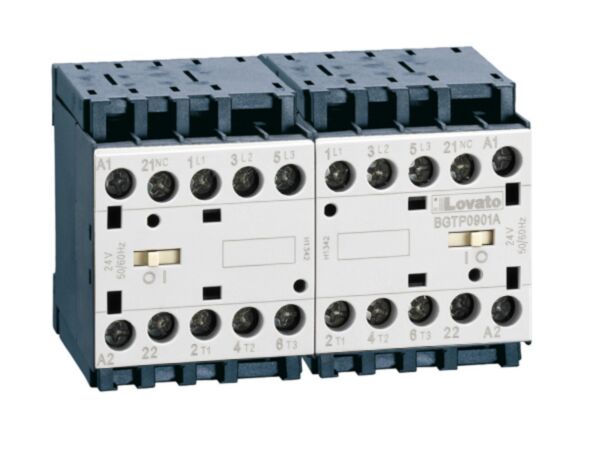

Designed for dependable motor reversing, the Lovato BGTP09 reversing contactor assembly (SKU 11BGTP0901D024) uses a 24VDC DC coil and a built‑in interlock. The open‑frame design with rear PCB solder pins delivers 9A AC‑3 in DC and 4kW performance, giving OEMs and maintenance teams a neat, panel‑ready solution.

Built to recognised standards, it conforms to IEC/EN 60947‑1 and 60947‑4‑1, plus UL508 and CSA C22.2 No. 14. Rated 5 HP at 480V (UL/CSA), this 460 g assembly suits control panels requiring reliable reversing. As a Lovato reversing contactor assembly, it integrates via PCB solder pins and carries a listed sustainability certification.

Key Benefits

• 24VDC DC coil for straightforward low‑voltage control integration.
• Built‑in interlock simplifies reversing configuration on PCB-mounted assemblies.
• Open‑frame design with rear PCB solder pins speeds assembly.
• 9A AC‑3 in DC rating supports reliable motor duty.
• 4kW capability suits compact machinery and small motors.
• UL/CSA 5 HP at 480V for recognised performance.
• Conforms to IEC/EN 60947, UL508 and CSA C22.2.
• Lightweight 460 g unit eases handling during integration.

Technical Specification

• Product type designation: BGTP09
• Weight: 460 g

What’s Included

• Lovato BGTP09 reversing contactor assembly with built‑in interlock
• Rear PCB solder pin interface
• Product identification label (SKU 11BGTP0901D024)

Applications

• Motor reversing control in industrial machinery
• OEM control panels using 24VDC coil control
• Conveyor, pump or fan direction switching duties
• Retrofit or maintenance replacements where PCB mounting is required

Safety note: Install and commission only by qualified personnel. Isolate all power before wiring or service, and follow the relevant standards and manufacturer documentation.
